| Brand Name: | IWAVE |
| Model Number: | Defensor-T6 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 5-8working days |
| Payment Terms: | T/T,L/C,D/P |
Vehicular VHF Digital Mobile Radio Best Tactical Radio For Civilians
Introduction
IWAVE' tactical MESH VHF SDR family guarantees reliable and secure voice and data services even in challenging environments. Its advanced waveforms empower flexible combat networks, offering Line-Of-Sight (LOS) and Non-Line-Of-Sight(NLOS) voice relay and Ad-hoc Networking for vital information sharing.
This radio system prioritizes Size, Weight, and Power (SWaP) optimization, significantly reducing the burden on warfighters, making it 40% lighter than comparable alternatives.

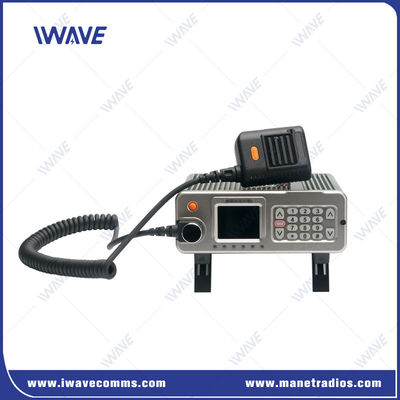

Defensor-T6 offers many versatile voice and data services, IWAVE Defensor-T6 digital mobile radio offers an intuitive user interface and very high quality. Ideal for desktop or in vehicle installations. The Defensor-T6 delivers professional communication in a mobile unit. It can wireless communicate with other handset radio(Defensor-T4).
It supports Ad Hoc networking to allow users freely and fast moving with clear voice and GPS information. And a palm microphone is supplied for easy operation in emergency scenario.
Key Features
|
Monitor the real time battery level, signal strength, online status, locations, etc of all the terminal radios and base stations in real time to ensure a smooth communication.
Adapting to complex communication environments with advanced waveforms available.
Ad-hoc network and 9.6kbps data transmission speed can effectively improve operational efficiency.
6 hops voice relay for seamless communications across the field.
The radio offers AES-128 software encryption for both voice and data communication, while also allowing for customized encryption configurations. |
Interface
|
|
|

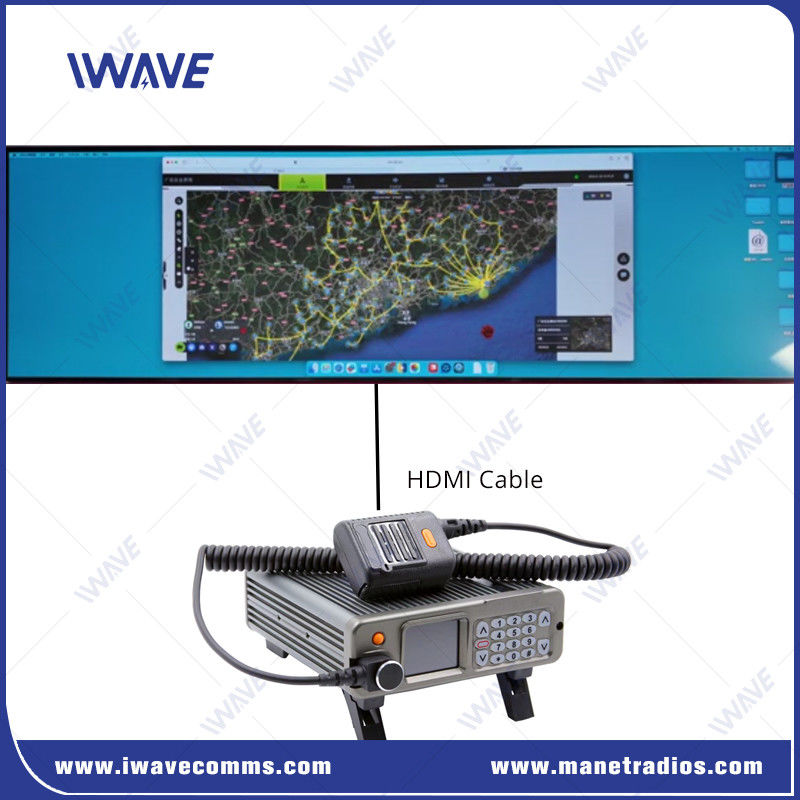

Display Screen: Utilizes a TFT display screen with low power consumption, providing clear visibility of device information even in bright lighting conditions. MIC/SP (Microphone/Speaker): Interface for microphone connection, enabling monitoring and calling functions. UART: Utilizes the dedicated IWAVE programming device through this interface to manage device information and read/write data. ANT: Antenna port for connecting the corresponding feeder. HDMI: High-definition display interface. USB: Interface for mouse and keyboard connections. |
Application
Real-Time Team Coordination
• Onsite officers using the MANET Radio T6 can maintain seamless communication, share vital updates, and issue commands during missions.
• Monitor team positions in real time via integrated GPS & BeiDou, and coordinate via voice communication.
• Visualize the deployment of PTT MESH Radios and MANET base stations on a digital map for tactical awareness.
Seamless Cross-Platform Integration
• The T6 is compatible with all IWAVE MANET radios (terminals & base stations), enabling ground personnel to automatically mesh with:
Manned & unmanned vehicles
UAVs (drones)
Maritime assets
This creates a resilient, interconnected network for enhanced operational coordination.
Specification
|
Frequency Options |
VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
Receiver | |||
|
Channel Spacing |
12.5kHz |
Sensitivity (5% BER) (Digital) |
Static Sensitivity |
-117dBm |
|
|
Multiple Access Method |
TDMA |
Dynamic Sensitivity |
-110dBm |
||
|
Modulation and Demodulation |
4FSK |
Sensitivity (12dB SINAD) (Analog) |
-117dBm | ||
|
Continuous Data Rate (Per Carrier) |
9.6kbps |
Maximum Signal Receive Level |
-7dBm |
||
|
Carrier Frequency Error |
±0.1ppm |
Adjacent Channel Selectivity |
-65dB@12.5KHz/-70dB@25KHz |
||
|
Operating Humidity |
20% ~ 80% |
Co-Channel Rejection |
12dB |
||
|
Storage Humidity |
<80% |
Blocking |
84dB |
||
|
Dimension |
65.5×159×166.5mm |
Intermodulation |
70dB |
||
|
Weight |
3.1kg |
Spurious Response Rejection |
70dB |
||
|
Operating Temperature |
-30℃ ~ 60℃ |
Conducted Spurious Emission |
-57dB |
||
|
Transmitter |
|||||
| Frequency Stability |
±0.1 ppm |
Maximum Tolerance for Output Power Variation |
±1.5dB(Normal)/+2/-3dB(Extreme) |
||
|
RF Output Power |
5~20Watts Adjustable |
Adjacent Channel Power |
-65dB@12.5KHz/ -75dB@25KHz |
||
|
Conducted/Radiated Interference (Antenna Port) (Transmission Mode) |
9kHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
Conducted/Radiated Interference (Antenna Port) (Idle Mode) |
30MHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
||
|
Intermodulation Attenuation |
≤-60dB@12.5KHz / ≤-70dB@25KHz |
Adjacent Channel Power during Instantaneous Switching |
±12.5kHz≤-50dB ±25kHz≤-60dB |
||
