| Brand Name: | IWAVE |
| Model Number: | Defensor-T6 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 5-8working days |
| Payment Terms: | T/T,L/C,D/P |

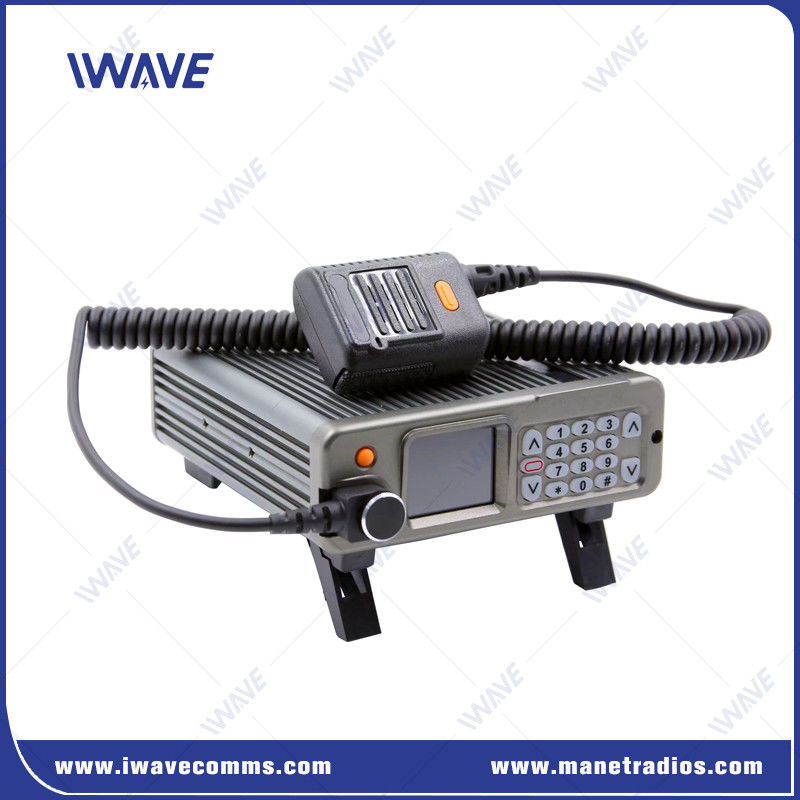

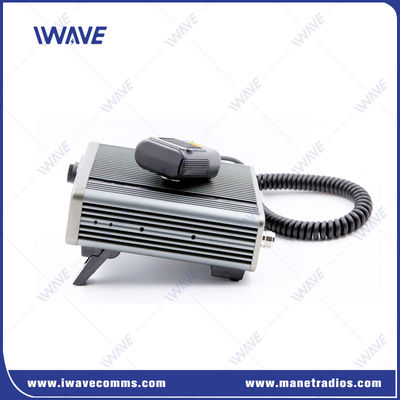

Ad Hoc Network Vehicle Emergency Radio Communication System
Introduction
Ad Hoc Network Vehicle Emergency Radio Communication System is the only infrastructure independent communications solution that can provide support in places where communications infrastructure is either non-existent or severely damaged.
Unlike conventional, VHF/UHF, cellular and satellite telephony, which all rely upon land-based infrastructure, a HF radio network requires no fixed infrastructure. As such, it is often the only reliable means of communications in critical conditions.
Communications over Mobile Ad Hoc Network simply requires a radio and antenna at each location. No other fixed infrastructure is needed, as IWAVE manet transceivers use the Mobile Ad Hoc Network technology via special waveform to send radio signals hundreds of kilometres.
Several MANET radio can wireless communicate with each other to expand the network to any corner where require a voice communication.
Key Features
|
|
Interface
|
|
|
Display Screen: Utilizes a TFT display screen with low power consumption, providing clear visibility of device information even in bright lighting conditions. MIC/SP (Microphone/Speaker): Interface for microphone connection, enabling monitoring and calling functions. UART: Utilizes the dedicated IWAVE programming device through this interface to manage device information and read/write data. ANT: Antenna port for connecting the corresponding feeder. HDMI: High-definition display interface. USB: Interface for mouse and keyboard connections. |
Application
Mission Commander is a Windows-based software suite that comes with abundant features are available for unified dispatching among different systems, such as individual call, group call, group patching, all call, broadcast call, priority call, emergency call, conference call, monitoring and ambience listening. It provides the vital information required to make informed real-time decisions.
IWAVE offers a complete range of d-hoc base stations, radios, accessories and passive components as well as ad-hoc mobile base station&radios for emergency&rescue.
Specification
|
Frequency Options |
VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
Receiver | |||
|
Channel Spacing |
12.5kHz |
Sensitivity (5% BER) (Digital) |
Static Sensitivity |
-117dBm |
|
|
Multiple Access Method |
TDMA |
Dynamic Sensitivity |
-110dBm |
||
|
Modulation and Demodulation |
4FSK |
Sensitivity (12dB SINAD) (Analog) |
-117dBm | ||
|
Continuous Data Rate (Per Carrier) |
9.6kbps |
Maximum Signal Receive Level |
-7dBm |
||
|
Carrier Frequency Error |
±0.1ppm |
Adjacent Channel Selectivity |
-65dB@12.5KHz/-70dB@25KHz |
||
|
Operating Humidity |
20% ~ 80% |
Co-Channel Rejection |
12dB |
||
|
Storage Humidity |
<80% |
Blocking |
84dB |
||
|
Dimension |
65.5×159×166.5mm |
Intermodulation |
70dB |
||
|
Weight |
3.1kg |
Spurious Response Rejection |
70dB |
||
|
Operating Temperature |
-30℃ ~ 60℃ |
Conducted Spurious Emission |
-57dB |
||
|
Transmitter |
|||||
| Frequency Stability |
±0.1 ppm |
Maximum Tolerance for Output Power Variation |
±1.5dB(Normal)/+2/-3dB(Extreme) |
||
|
RF Output Power |
5~20Watts Adjustable |
Adjacent Channel Power |
-65dB@12.5KHz/ -75dB@25KHz |
||
|
Conducted/Radiated Interference (Antenna Port) (Transmission Mode) |
9kHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
Conducted/Radiated Interference (Antenna Port) (Idle Mode) |
30MHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
||
|
Intermodulation Attenuation |
≤-60dB@12.5KHz / ≤-70dB@25KHz |
Adjacent Channel Power during Instantaneous Switching |
±12.5kHz≤-50dB ±25kHz≤-60dB |
||
