| Brand Name: | IWAVE |
| Model Number: | Defensor-T6 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 5-8working days |
| Payment Terms: | T/T,L/C,D/P |
Multimedia Dispatch Radio for MANET MESH Radio Network
Introduction
Defensor-T6 is built in a command and dispatch center software installed on the server. It consists of an emergency platform and a control center. Serving as the center of emergency system, i-SCOUT is responsible for coordination between the link units (such as Handset or base station ) and gateway devices, and the switch control of voice and data.

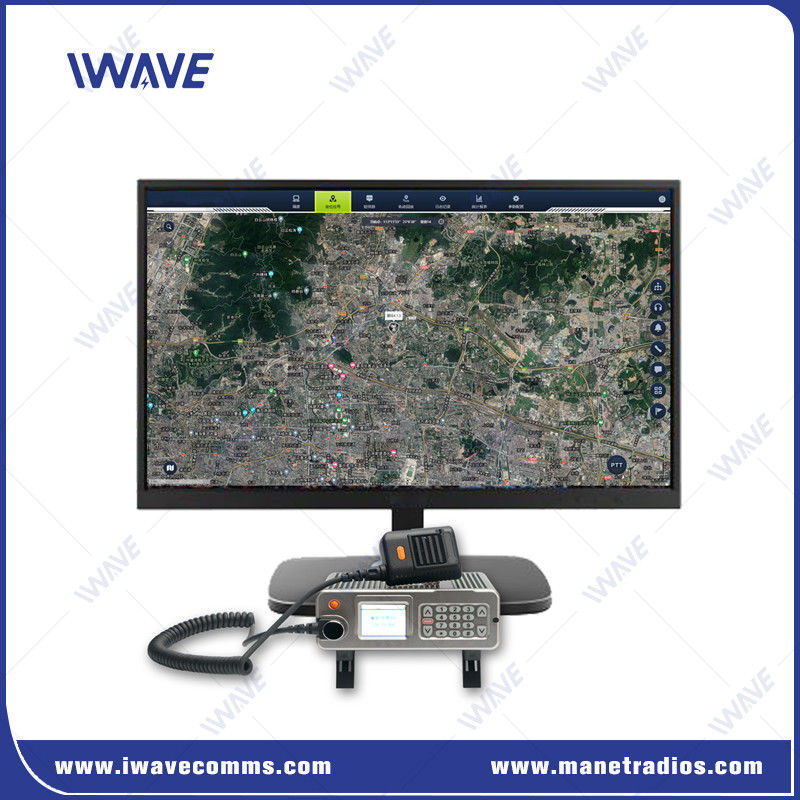

In addition, it provides a GUI platform for the dispatcher to manage networks, monitor devices, locate devices or personnel, query and play back the recording, view alarms, and so on.
Defensor-T6 is also a base station/radio designed specifically for self-organizing networks. It employs IWAVE’s independently developed addressing technology and advanced self-organizing network techniques to achieve wireless automatic networking. It operates without reliance on any wired resources and does not require support from public wireless links like 4G or satellites.
The interconnection between base stations requires no engineering adjustments, as the networking process is automatically coordinated through a handshake after powering on, locking onto satellites for normal operation.
The 20W RF power provides range extension and increased link reliability. It is ready to connect to Ah-hoc network communication systems for collaboration in action.
Key Features
|
|

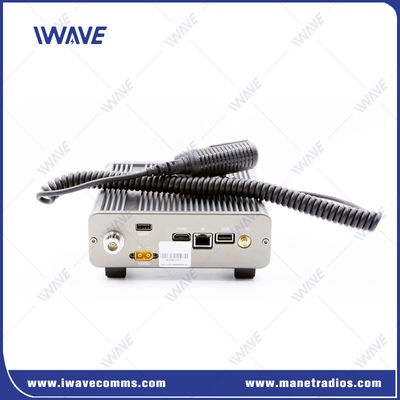

Interface
|
|
|
Display Screen: Utilizes a TFT display screen with low power consumption, providing clear visibility of device information even in bright lighting conditions. MIC/SP (Microphone/Speaker): Interface for microphone connection, enabling monitoring and calling functions. UART: Utilizes the dedicated IWAVE programming device through this interface to manage device information and read/write data. ANT: Antenna port for connecting the corresponding feeder. HDMI: High-definition display interface. USB: Interface for mouse and keyboard connections. |
Application
IWAVE MANET tactical radios system forms a robust, self-forming, self-healing wireless network for public safety, emergency response, energy, and humanitarian missions-critical communication.The various elements of the IWAVE Mobile Ad Hoc Network are designed to meet the communication needs of dispatchers in Operations Centers, field personnel responding to emergencies wherever they occur, and specialists at various specialized support centers, regardless of their geographic location.
Specification
|
Frequency Options |
VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
Receiver | |||
|
Channel Spacing |
12.5kHz |
Sensitivity (5% BER) (Digital) |
Static Sensitivity |
-117dBm |
|
|
Multiple Access Method |
TDMA |
Dynamic Sensitivity |
-110dBm |
||
|
Modulation and Demodulation |
4FSK |
Sensitivity (12dB SINAD) (Analog) |
-117dBm | ||
|
Continuous Data Rate (Per Carrier) |
9.6kbps |
Maximum Signal Receive Level |
-7dBm |
||
|
Carrier Frequency Error |
±0.1ppm |
Adjacent Channel Selectivity |
-65dB@12.5KHz/-70dB@25KHz |
||
|
Operating Humidity |
20% ~ 80% |
Co-Channel Rejection |
12dB |
||
|
Storage Humidity |
<80% |
Blocking |
84dB |
||
|
Dimension |
65.5×159×166.5mm |
Intermodulation |
70dB |
||
|
Weight |
3.1kg |
Spurious Response Rejection |
70dB |
||
|
Operating Temperature |
-30℃ ~ 60℃ |
Conducted Spurious Emission |
-57dB |
||
|
Transmitter |
|||||
| Frequency Stability |
±0.1 ppm |
Maximum Tolerance for Output Power Variation |
±1.5dB(Normal)/+2/-3dB(Extreme) |
||
|
RF Output Power |
5~20Watts Adjustable |
Adjacent Channel Power |
-65dB@12.5KHz/ -75dB@25KHz |
||
|
Conducted/Radiated Interference (Antenna Port) (Transmission Mode) |
9kHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
Conducted/Radiated Interference (Antenna Port) (Idle Mode) |
30MHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
||
|
Intermodulation Attenuation |
≤-60dB@12.5KHz / ≤-70dB@25KHz |
Adjacent Channel Power during Instantaneous Switching |
±12.5kHz≤-50dB ±25kHz≤-60dB |
||
