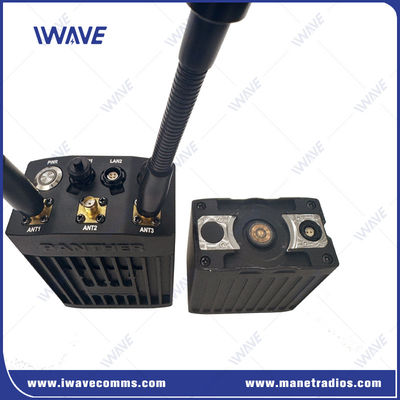

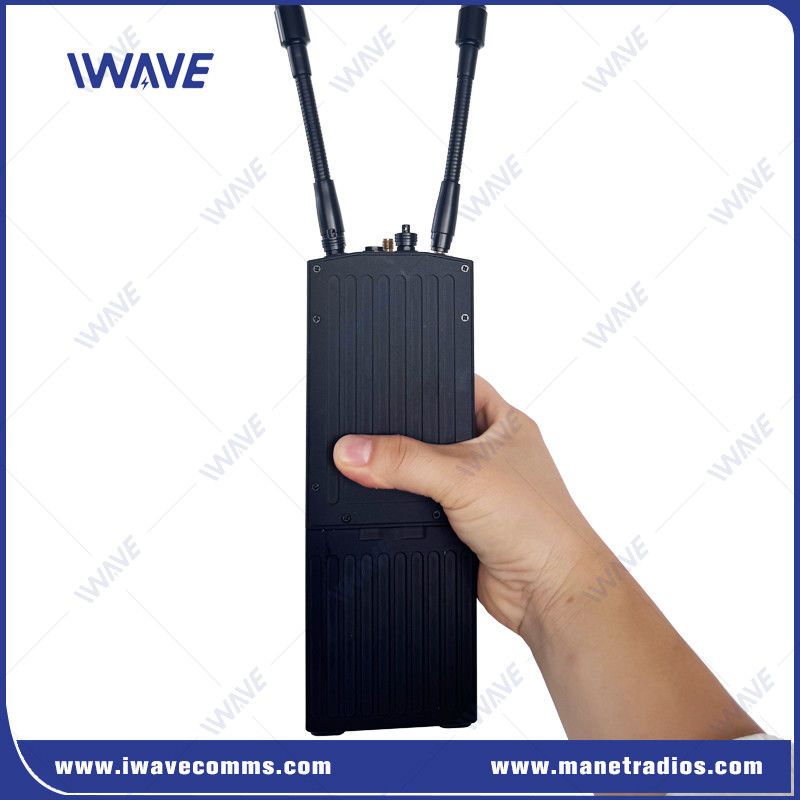

UHF Smart IP MESH Radio FHSS Frequency Hopping Handheld Radio

The FD-7805S is a versatile, high-performance portable wireless ad-hoc communication system designed by IWAVE. It supports automatic relaying and multi-hop functions, enabling wireless intercom, HDMI/network video input, and Layer 2 data transmission among individual soldiers without relying on a central base station.

Additionally, it integrates BeiDou/GPS positioning and works with the IWAVE MESH management platform to provide real-time tracking of soldiers' geographical locations.

Featuring a MIMO 2×2 dual-antenna design, the system leverages multipath reflections from obstacles to enhance communication reliability. Despite its compact size, it incorporates a high-efficiency 5W power amplifier for extended operational range.

This system delivers robust communication support for demanding scenarios such as counter-terrorism operations, fire rescue missions, and military exercises. It also offers an all-in-one solution for controlling drones, unmanned vehicles, and robots, as well as GIS positioning and audio-video dispatching.

Application Fields

• Emergency Communications / Emergency Rescue Command / Emergency Communication Vehicles

• MESH Ad-Hoc Networks / Single-Frequency Communication / Military Exercises

• Smart Optical-Electronic Cities / Outdoor Power & Survey Operations / Airborne & Marine Transmission

• Urban Patrol Private Network Construction / Military Drills & Squad Communications / UAV Video & Data Transmission

Key Features Secured and powerful SDR platform with 2Tx & 2Rx RF channels  Complete wide frequency coverage: U-band 566-678Mhz and L-band 1420-1530Mhz  Integrated design, convenient for carrying and use With HDMI interface, supporting HDMI video input Supports WI-FI connection and GPS/BD positioning Support voice intercom Support point-to-point/point-to-point/many to many communication methods Support adaptive transmission rate of 1-100+Mbps With lithium batteries, usage time≥8 hours Full duplex bidirectional data transmission, full IP transparent data transmission IP66 protection level, high reliability One click use upon device startup, no need to configure or change parameters, convenient operation and maintenance

A secure and powerful software defined radio (SDR) platform for law enforcement with 2Tx/2Rx RF channels.

Multi-Mission, Multi-Waveform Capable
A resilient and agile networking platform designed to excel across all operational environments and mission requirements.

Uncompromising Performance
Delivers flawless connectivity and real-time battlefield awareness through optimized RF efficiency and lightweight, low-power design.

Part of the FD SDR Ecosystem
Next-generation joint-domain networking, ensuring interoperability across all forces, command levels, and mission scenarios.

Technical Parameters

Applications: IWAVE FD-7805S UHF Smart IP MESH Radio FHSS Frequency Hopping Handheld Radio

The solution supports net-centric connectivity with a scalable and flexible network structure, providing a resilient, fast, and powerful network for superior situational awareness and operational effectiveness. With multi-band, multi-waveform, and multi-role capabilities, they are perfect for land, maritime, and airborne operations, ensuring robust VHF, UHF, and L Band communication with GPS-independent synchronization. IWAVE Software Defined Radios redefine tactical communication. The IWAVE Mobile SDR family is designed to meet the complex communication and connectivity needs of all echelons and operational scenarios.

Cross Platform Connectivity

The FD-7805S utilizes IWAVE's proven and industry-leading MS-LINK technology (featuring proprietary time-slot frame structure and waveforms), housed in a portable ruggedized enclosure. This enables ground-based end users to automatically establish mesh networks with manned/unmanned vehicles, UAVs, maritime assets, and infrastructure nodes to create robust battlefield connectivity.
