| Brand Name: | IWAVE |
| Model Number: | FD-7805S |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 10Days |

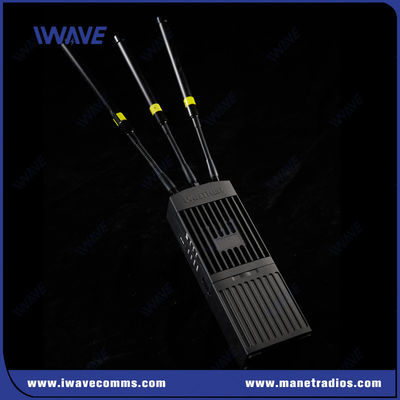

NLOS 3km Cofdm Tactical 2x2 MIMO Radios Wireless Hd Handheld Video Transmitter

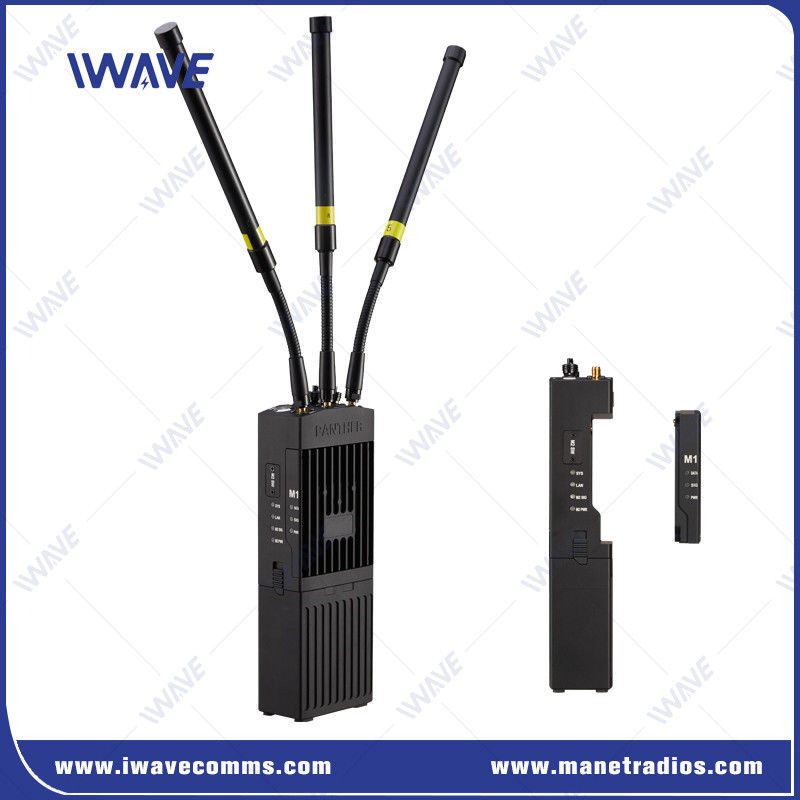

FD-7805S is a low-SWaP, low-cost 2×2 MIMO radio powered by the 2X2 MIMO waveform. Up to 5Watt of power and available as rugged handheld (inside battery powered) or non-rugged OEM module.
FD-7805S is equipped with a headset, the body-worn device enables continuous communication, allowing voice, data, and video transmission with minimal handling. Equipped with advanced resilience and spectrum-sensing features, the FD-7805S enables uninterrupted communication by neutralising jamming threats, optimising the use of available frequencies, and reducing interference, all without interrupting user operations.
Key Features of MIMO Tactical MESH Radio
Dynamic Link Adaptation: Automatically adjusts transmission parameters to maximize data throughput in changing environments.
Superior Multipath & NLOS Performance: Ensures reliable connectivity even in non-line-of-sight (NLOS) and multipath-rich scenarios.
High-Speed Mobility Support: Optimized for stable operation on fast-moving platforms.
Flexible Bandwidth Options: Configurable 1.4MHz/3MHz/5MHz/10MHz/20MHz/40MHz modes for adaptable deployment.
2X Effective Transmit Power: Extends communication range and boosts data throughput.
Spatial Multiplexing: Increases transmission efficiency for higher data rates.
Space-Time Coding: Enhances signal reliability in challenging conditions.
RX Beamforming: Improves reception quality through intelligent signal focusing.
Self-Organizing & Self-Healing Mesh: Automatically establishes and maintains network connectivity without infrastructure.
Multiple-Frequency Band Option: Efficient spectrum utilization for scalable deployments.
Scalable Network Size: Supports up to 64 nodes within a single network.
Flexible Topologies: Compatible with star, hub-spoke, relay chains, backbone infrastructure, and hybrid configurations.
|
Advanced Wireless Communication Capabilities
|
|
Multi-role, Multi-waveform
A secure, dynamic network solution adaptable to diverse terrains and mission demands.
Superior Performance
Seamless communication and enhanced situational awareness with superior RF performance and minimal SWaP.
Member of IWAVE FD SDR Family
Advanced multidomain networking to meet the evolving communication needs of the modern battlefield across all domains, echelons and mission profiles.
| Parameter | Description |
|---|---|
| Network Scalability | High Scalability |
| Hops | 63hops |
| Bandwidth | 100Mbps |
| Network Capacity | Up To 64 Nodes |
| Network Range | Up To Several Kilometers |
| Network Management | Centralized And Distributed Management |
| Network Reliability | High Reliability |
| Network Topology | Mesh |
| Network Flexibility | High Flexibility |
| Network Security | Encryption, Firewall, Etc. |
| Network Interoperability | High Interoperability |
| Data Rate | Up To Several Mbps |
The solution supports net-centric connectivity with a scalable and flexible network structure, providing a resilient, fast, and powerful network for superior situational awareness and operational effectiveness. With multi-band, multi-waveform, and multi-role capabilities, they are perfect for land, maritime, and airborne operations, ensuring robust VHF, UHF, and L Band communication with GPS-independent synchronization. IWAVE Software Defined Radios redefine tactical communication. The IWAVE Mobile SDR family is designed to meet the complex communication and connectivity needs of all echelons and operational scenarios.
Cross Platform Connectivity
The FD-7805S utilizes IWAVE's proven and industry-leading MS-LINK technology (featuring proprietary time-slot frame structure and waveforms), housed in a portable ruggedized enclosure. This enables ground-based end users to automatically establish mesh networks with manned/unmanned vehicles, UAVs, maritime assets, and infrastructure nodes to create robust battlefield connectivity.
