50km Mavlink 2.4GHz COFDM UAV Video Transmitter Ultra long range UP/Downlink

Name: 50km Mavlink 2.4GHz COFDM UAV Video Transmitter Ultra long range UP/Downlink
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FIM-2450
Availability: InStock

Brand Name:	IWAVE
Model Number:	FIM-2450
MOQ:	1SET
Delivery Time:	7-14DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

RF Transmitted Power:

33dbm

Weight:

160g

Latency:

50ms

Modulation:

TDD-COFDM

Antenna:

2T2R

Transmit Range:

50KM

Encryption:

AES256

Bandwidth:

4/8Mhz

Packaging Details:

Standard exporting package

Supply Ability:

1000SET

Highlight:

2.4GHz Mavlink Video Transmitter

COFDM Mavlink Video Transmitter

50km Mavlink Video Transmitter

Product Description

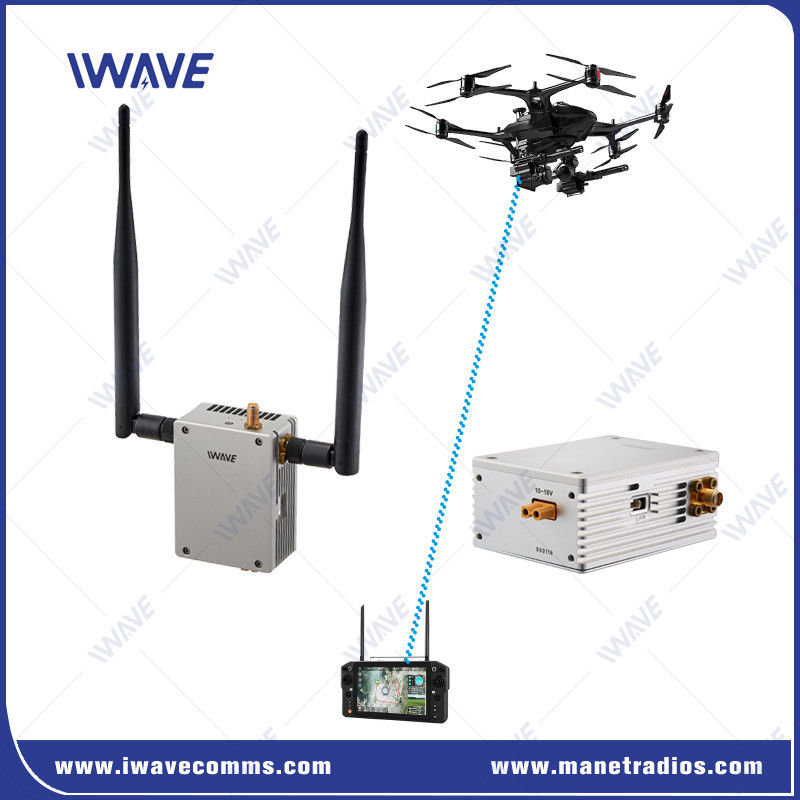

50km Mavlink 2.4GHz COFDM UAV Video Transmitter Ultra long range UP/Downlink

FIM-2450 is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (50km) and low delay(50ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this IWAVE series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

Frequency Option

2.3Ghz	2304 ~ 2390 MHz
2.4Ghz	2402~2482 MHz
2.5Ghz	2500~2570 MHz

Features

Working Temperature: -40℃~+85℃
Support SBUS/PPM/TTL/232/485
Video: Video sources self-adaptive(Max 1080P/60), Support SDI/HDMI Input/output
Support Video and Duplex Data
Compatible with different brand flight control system and remote controller
100Mbps Ethernet for option
Matching with our TPlayer software (low latency software decoder) to display video on PC

Application:

Advanced Wireless Data Links and Communications for Drones, UAVs, UGVs, USVs

Specification

Frequency	2.3Ghz	2304 ~ 2390 MHz
	2.4Ghz	2402~2482 MHz
	2.5Ghz	2500~2570 MHz
Bandwidth	2/4/8MHz
RF Power	2W (Bi-Amp, 2W Peak Power of each power amplifier)
Transmit Range	50km
Transmit Rate	1.5/3/6Mbps (Video code stream and serial data) The best video stream: 2.5Mbps
Baud Rate	115200(Adjustable)
Rx Sensitivity	-100/-95/-90dbm
Wireless Fault Tolerance Algorithm	Wireless baseband FEC forward error correction / video codec super error correction
Video Latency	Latency for encoding + transmission + decoding 720P/60 <50 ms 1080P/60 <80ms
Link Rebuild Time	<1s
Modulation	Uplink QPSK/Downlink QPSK
Video Compression Format	H.264
Video Color Space	4:2:0 (Option 4:2:2)
Encryption	AES128
Start Time	25s
Power	DC-12V (10～18V)
Interface	Interfaces on Tx and Rx are same Video input/Output: Mini HDMI×1 Power Input Interface×1 Antenna Interface: SMA×2 Serial×2: (Voltage:+-13V(RS232), 0~3.3V(TTL) Ethernet: 100Mbps x 1
Indicators	Power Tx and Rx Status Indicator Tx and Rx Working Indicator Ethernet Working Indicator
Power Consumption	Tx: 17W(Max) Rx: 6W
Temperature	Working: -40 ~+ 85℃ Storage: -55 ~+85℃
Dimension	Tx/Rx: 73.8 x 54 x 31 mm
Weight	Tx/Rx: 160g

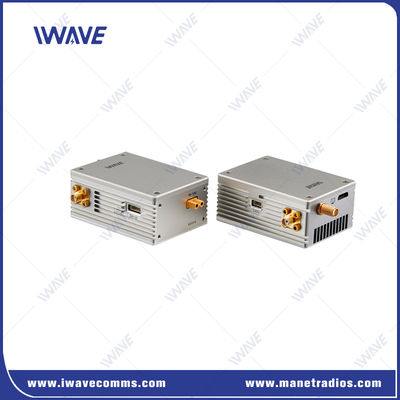

Metal Case Design	CNC Technology
	Double Aluminum Alloy Shell
	Conductive anodizing craft

50km Mavlink 2.4GHz COFDM UAV Video Transmitter Ultra long range UP/Downlink 0

Real Time Control, Real Time Video Stream, In Your Hands
