| Brand Name: | IWAVE |
| Model Number: | FIM-2450 |
| MOQ: | 1SET |
| Delivery Time: | 7-14DAYS |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |

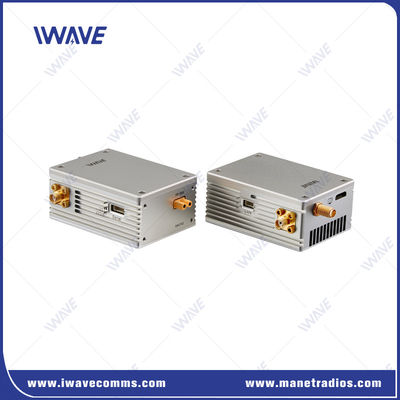

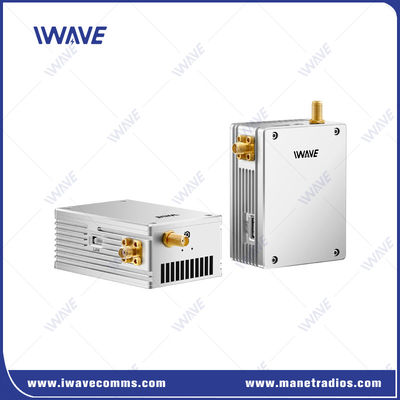

2.4GHz 50km UAV/FPV/Fixed Wing Drone Wireless HDMI COFDM Transmitter Receiver
The Advanced Mini Link System (FIM-2450) is an advanced digital data and Video link system designed for mini UAVs and smaller sized tactical UAS as well as UGVs. With a weight of just 160 grams, it is ideal for such platforms with more stringent SWaP requirements.
The open architecture system enables full duplex wideband, error correction techniques and high-rate communication, with the ability to downlink real-time video images, LAN and serial data, and information from a wide range of sensors. With high spectral efficiency and data rate selectivity, the system allows for multiple unmanned aircraft operating in the same airspace vicinity.
With a range of up to 50km, the FIM-2450 is ideal for extended UAV and UGV missions including battlefield reconnaissance and IED detection.
Frequency Option
| 2.3Ghz | 2304 ~ 2390 MHz |
| 2.4Ghz | 2402~2482 MHz |
| 2.5Ghz | 2500~2570 MHz |
Features
|
|
Application:

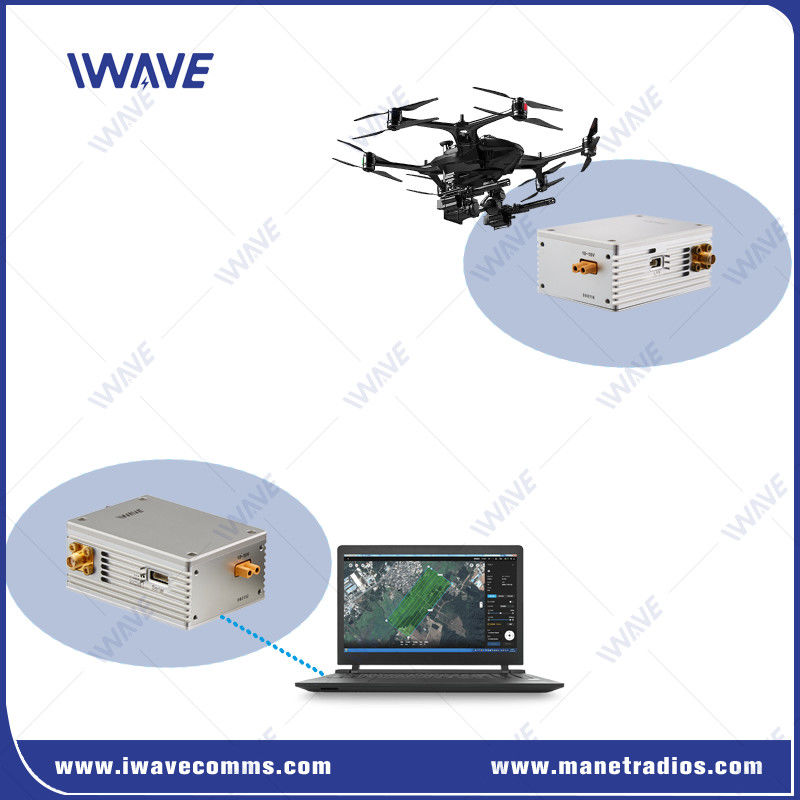

Components: Integrated airborne transmitters, ground receivers, and directional antennas (e.g., high-gain parabolic for long range).
Applications:
Law Enforcement: Surveillance during operations (e.g., crowd monitoring, suspect tracking).
Emergency Response: Live aerial footage for firefighting, search and rescue.
Infrastructure Monitoring: Inspecting pipelines, power lines, or disaster zones.
Specification
| Frequency | 2.3Ghz | 2304 ~ 2390 MHz |
| 2.4Ghz | 2402~2482 MHz | |
| 2.5Ghz | 2500~2570 MHz | |
| Bandwidth | 2/4/8MHz | |
| RF Power | 2W (Bi-Amp, 2W Peak Power of each power amplifier) | |
| Transmit Range | 50km | |
| Transmit Rate |
1.5/3/6Mbps (Video code stream and serial data) The best video stream: 2.5Mbps |
|
| Baud Rate | 115200(Adjustable) | |
| Rx Sensitivity | -100/-95/-90dbm | |
| Wireless Fault Tolerance Algorithm | Wireless baseband FEC forward error correction / video codec super error correction | |
| Video Latency |
Latency for encoding + transmission + decoding 720P/60 <50 ms 1080P/60 <80ms |
|
| Link Rebuild Time | <1s | |
| Modulation | Uplink QPSK/Downlink QPSK | |
| Video Compression Format | H.264 | |
| Video Color Space | 4:2:0 (Option 4:2:2) | |
| Encryption | AES128 | |
| Start Time | 25s | |
| Power | DC-12V (10～18V) | |
| Interface |
Interfaces on Tx and Rx are same
|
|
| Indicators |
|
|
| Power Consumption |
Tx: 17W(Max) Rx: 6W |
|
| Temperature |
Working: -40 ~+ 85℃ Storage: -55 ~+85℃ |
|
| Dimension | Tx/Rx: 73.8 x 54 x 31 mm | |
| Weight | Tx/Rx: 160g | |
| Metal Case Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
|
|
