| Brand Name: | IWAVE |
| Model Number: | FD-615VT |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

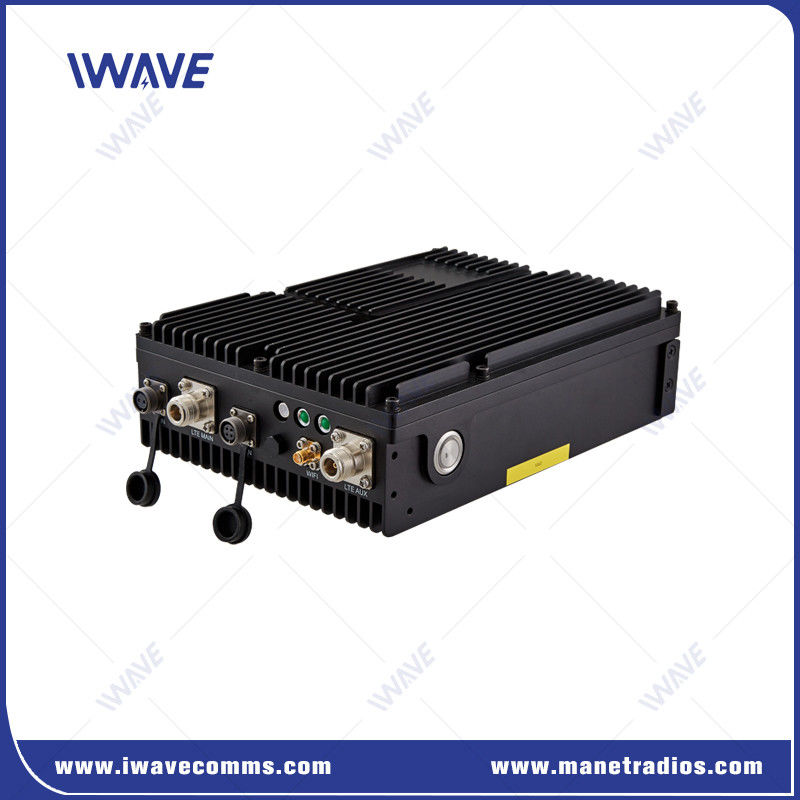

20Watts Tactical MIMO IP MESH for Vehicle Installations
Introduction
IWAVE FD-625VT 2x2 MIMO IP MESH radio is built to create powerful, secure communication networks anywhere, anytime.
It has been designed for non-line-of-sight long range communication where communication is most critical and difficult to achieve. Providing up to 20W total RF power output over two transmit ports for extreme long-range for high data throughput for vehicle-to-vehice and vehicle to drone communications.
FD-625VT is high sensitivity UHF band MANET solution for vehicles. It achieve better performace in non-line-of-sight environment for sharing voice, video, text, sensor, and location data while on the move in nlos complex environment.
Features
|
 |
Application
FD-625VT IP Mesh Radios can be combined in a fluid self-forming, self-healing mesh network containing up to 32 nodes.
The entire mesh can operate in bandwidth from 1.4kHz to 20MHz, employing IFLY unique COFDM modulation scheme and LTE technology protocol with very high sensitivity, which make its performance very stable in nlos enviornment. Multiple Input Multiple Output (MIMO) technology transmits two way UDP/TCPIP data and UART control data.
Specification
| GENERAL | |||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | ||
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | ||
| DATE RATE | 30Mbps(Uplink and Downlink) | ||
| RANGE | 5km-10km(nlos ground to ground) (depends on the actual environment) | ||
| CAPACITY | 32nodes | ||
| MIMO | 2x2 MIMO | ||
| POWER | 10watts/20watts | ||
| LATENCY | One Hop Transmission≤30ms | ||
| MODULATION | QPSK, 16QAM, 64QAM | ||
| ANTI-JAM | Automatically Cross-Band frequency hopping | ||
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | ||
| POWER CONSUMPTION | 30Watts | ||
| POWER INPUT | DC28V | ||
| SENSITIVITY | |||
| 2.4GHZ | 20MHZ | -99dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 1.4GHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 800MHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| FREQUENCY BAND | |||
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| 1.4Ghz | 1427.9-1447.9MHz | ||
| 800Mhz | 806-826 MHz | ||
| MECHANICAL | |||
| Temperature | -20℃~+55℃ | ||
| Weight | 8kg | ||
| Dimension | 30×25×8cm | ||
| MATERIAL | Anodized Aluminum | ||
| MOUNTING | Vehicle-mounted | ||
| Stability | MTBF≥10000hr | ||
| INTERFACES | |||

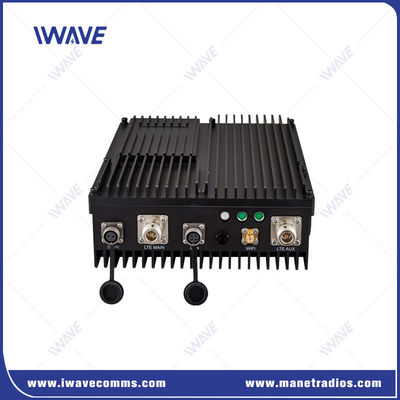

| RF | 2 x N Type Connector1x SMA for Wifi | ||
| ETHERNET | 1 x LAN | ||
| PWER INPUT | 1 x DC Input | ||
| TTL Data | 1 x Serial Port | ||
| Debug | 1 x USB | ||
Video
Video
Video
Video
Video
Video
Video
Video
|
