100 Mbps Bidirectional Link Transceiver for Robotics 600Mhz and 1.4Ghz selectable

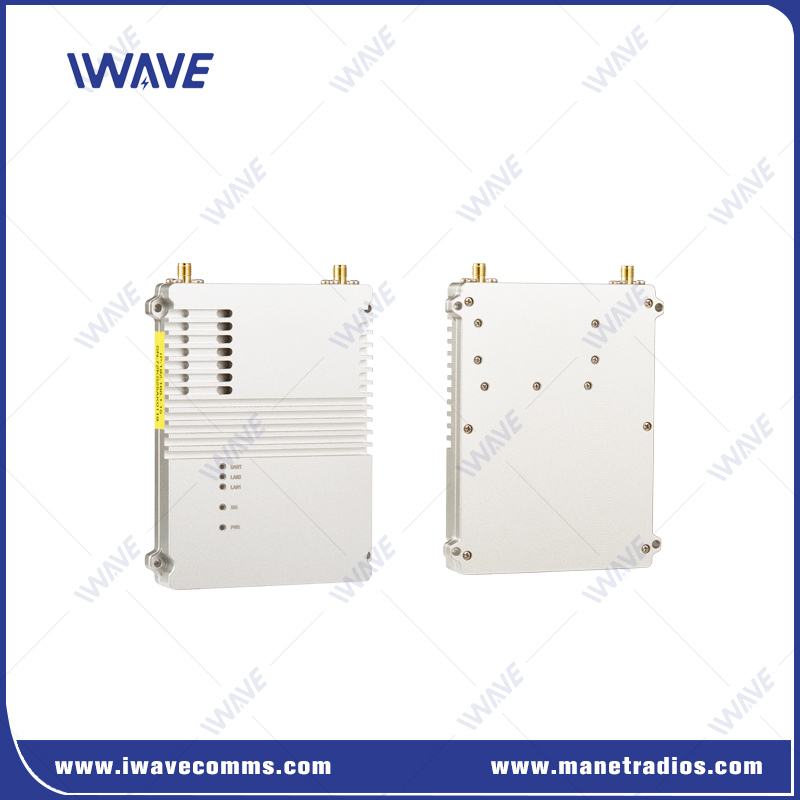

The FDM-6823UG-100Mbps-64Nodes-30km is a professional-grade, two-way wireless transmission system designed specifically for ensuring wireless data communications for mission-critical unmanned platforms. Based on advanced COFDM + star network point-to-multipoint technology, this compact transceiver enables reliable, low-latency, high-bandwidth video, audio, and data links at distances up to 30km LOS and 3km NLOS.

This model supports a star topology network, with up to 64 transmitters (mobile nodes) communicating simultaneously with a single central receiver, enabling multiple camera angles and real-time capture and broadcast.

1. Supports simultaneous multi-device connections: Supports up to 64 nodes, with a master-slave architecture for efficient management.

2. Dual-band support: Software-controlled switching between the 600 MHz and 1.4 GHz bands optimizes communication performance for diverse environments.

3. Strong anti-interference capabilities: Built-in frequency hopping sequence (FHSS) and adaptive modulation technology effectively mitigate signal interference and ensure stable communication.

4. Large bitrate: Supports up to 100 Mbps bandwidth and simultaneous uplink and downlink transmission.

5. Strong non-line-of-sight capabilities: Provides stable ground-to-ground communication in non-line-of-sight conditions from 500 meters to 3 kilometers.

6. Adjustable power: Power ranges from 2W to 5W, allowing for flexible adaptation to diverse environments.

7. 2x2 MIMO technology: Utilizes 2x2 MIMO technology to improve data transmission speed and signal stability.

1. High-Speed ​​100 Mbps Bidirectional Transmission The radio provides up to 100 megabits per second (Mbps) of full-duplex wireless bandwidth, supporting real-time video, telemetry, and IP data. Uplink and downlink channels operate simultaneously, supporting real-time HD video streaming from multiple race cars while simultaneously transmitting control commands and telemetry data back without latency. 2. Robust Non-Line-of-Sight Capabilities Designed for high mobility and low-latency operation, this transceiver ensures continuous connectivity between fast-moving unmanned ground vehicles and control centers in non-line-of-sight environments. It supports fast link recovery, automatic frequency adaptation, and robust error correction, ensuring smooth video and data transmission from unmanned platforms in complex environments.

Q1: What types of communications does the FDM-6823UG support?
A1: The FDM-6823UG supports wireless communication for HD video transmission, data transmission, and serial control signals, providing comprehensive support for a wide range of applications.

Q2: How do I switch frequency bands?
A2: The 600 MHz and 1.4 GHz frequency bands can be easily switched via software, eliminating the need to change hardware. Operation is simple and fast.

Q3: How does the FHSS function work?
A3: Frequency Hopping Separation (FHSS) technology automatically selects the optimal frequency based on received signal strength, signal-to-noise ratio, and other parameters to avoid interference and ensure stable communication.

Q4: Is the FDM-6823UG suitable for high-speed mobile applications?
A4: Yes, the FDM-6823UG can maintain a stable wireless connection even at speeds of up to 300 km/h.

Q5: What is the maximum number of devices that can be connected to each network?
A5: FDM-6823UG supports up to 64 nodes to achieve efficient distributed communication.
