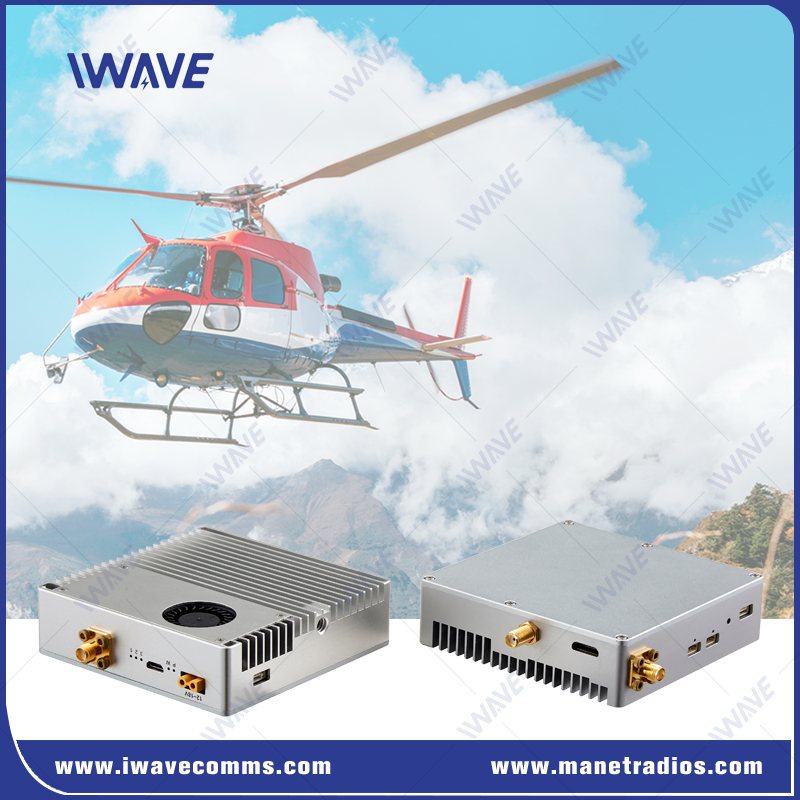

80km Long-Distance VTOL Drone Video Transmitter With Serial Control

The IWAVE FMS-8480 drone HDMI and SDI video transmitter and serial data downlink provides robust video and control channels for big drones(VTOL/Fixed wing drone) with HDMI, SDI and IP video input. It delivers full HD video and MAVLINK flight control data wireless mobile communication without any infrastructure for 80km.

FMS-8480 has two full duplex serial ports. They are able to wireless transmit the control signal for flight controller fixed on the UAV. It has been smoothly work with pixhawk 2 /cube/v2.4.8/4 , Apm2.8, etc. Ground software support Mission planner and QGround.

FMS-8480 drone digital video transmitter employs AES128 for the video encryption to ensure no one unauthorized is able to intercept your video feed.

Frequency Option

• 800Mhz
• 1.4Ghz

Key Features

80km HD video BVLOS Communication

80 km+ (49.7 miles+) line-of-sight (LOS) range.

Throughput up to 6Mbps for 80km.

Channels for video, telemetry and control in one device.

Dual Tx antenna and Dual Rx antenna.

Highly efficient H.264+H.265/FPGA Encoding

Support Multiple Type Camera

Video Input: Support IP camera, hdmi camera and sdi camera

1*LAN Port: TCPIP/UDP

Video Output Interface: HDMI+SDI+Ethernet

Short Latency

End to end 40ms for 720P60 video

End to end 50ms for 1080P30 video

End to end 80ms for 1080P60 video

Light Weight Special for Drone

Air unit is only 250grams(8.8 ounces)

Application:

Drone video downlink systems are crucial for transmitting real-time video, providing essential visual information to ground personnel.

1. Real-Time Monitoring: Acts as the "eyes" of drones, delivering clear video feeds to ground teams, enabling immediate situational awareness.
2. Rapid Response: Facilitates quick decision-making and actions during emergencies, ensuring timely interventions.

Specification
