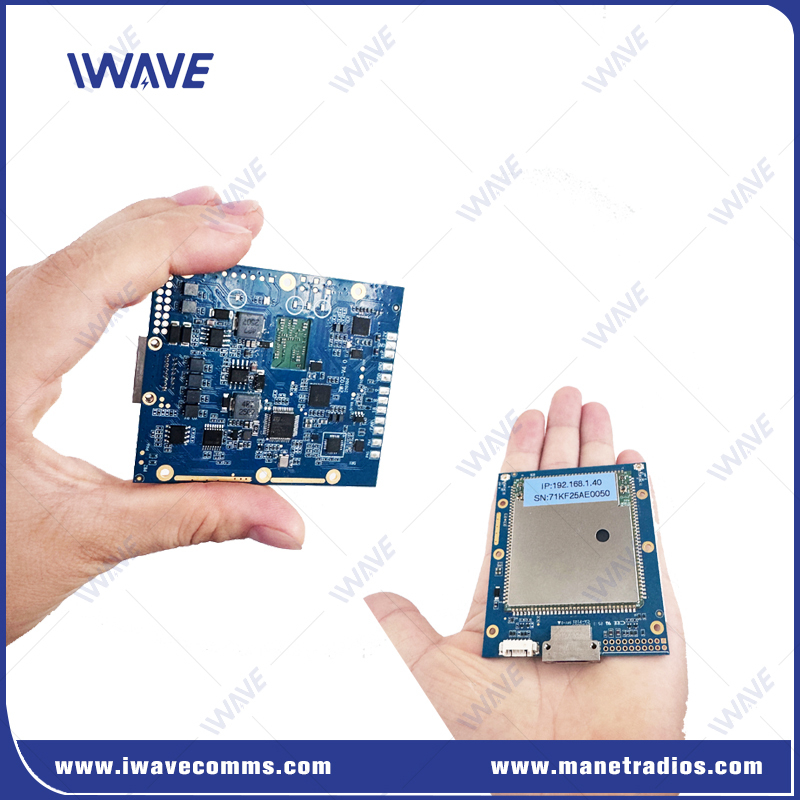

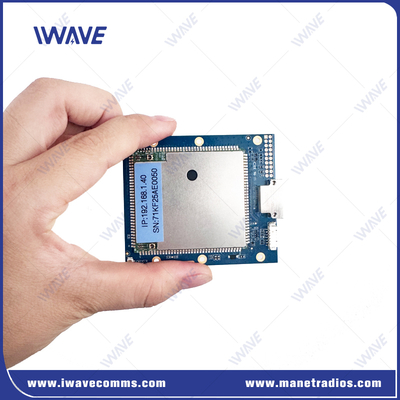

Miniature OEM Dual-Band Digital Data Link

The all-new MIMO FD-7800 IP MESH Digital Data Link is an ultra-compact, high-power, dual-band wireless OEM solution. This digital data link delivers stable and reliable performance across two software-selectable frequency bands.

The FD-7800 employs Maximum Ratio Combining (MRC), Maximum Likelihood (ML) decoding, and Low-Density Parity-Check (LDPC) to achieve robust RF performance.

A novel dynamic frequency selection technology combining OFDM overlay and frequency hopping provides strong anti-jamming and interference resistance!

With its compact, lightweight, and rugged design, the FD-7800 is ideal for size- and weight-sensitive applications. Its high-speed, long-range performance enables high-quality wireless video and telemetry communications.

Key Advantages:
● Dual-band, software-selectable frequency operation

● Advanced MIMO & OFDM technology

● Dynamic frequency hopping for anti-jamming

● High power & long-range data transmission

● Compact & rugged for demanding environments

This makes the FD-7800 a powerful solution for military, industrial, robotics, and mission-critical communications.

High-Speed Wireless Data Link System - Key Features:

 ✔Blazing-Fast Data Rates >100Mbps!

✔Cross-Platform Network Software (Linux/Windows/Android)

 ✔Advanced Frequency Agility

●Dynamic Frequency Selection (DFS)

●Frequency Hopping Spread Spectrum (FHSS)

●Software-Selectable Dual-Band Operation:

• 566-678MHz Band

• 1420-1530MHz Band

✔ Powerful & Adjustable RF Output

●Up to 200mW Transmit Power (Software-Tunable)

●Flexible Channel Bandwidth Options: 1.4/3/5/10/20/40MHz

✔ Versatile Network Topologies

●Point-to-Point (P2P)

●Point-to-Multipoint (P2MP)

●Self-Healing MESH Networks

●Multiple Operation Modes: Master/Remote/Relay/MESH

Network Management Software

✔ Military-Grade Networking

●MANET MESH Capability

●Advanced MESH Routing Protocols

✔ Professional RF Tools

●Built-in Real-Time Spectrum Analyzer

✔ Rich Connectivity Options

●Serial (RS-232/485) & USB 2.0/3.0 Ports

●Dual Ethernet Ports (LAN/WAN)

✔ Ruggedized Design

●Extreme Temperature Range: -40°C to +85°C

●Ultra-Compact Form Factor: 72×60×10mm

●Super Lightweight: Only 33 grams!

✔ Enterprise Security

●128-bit AES Encryption

FHSS(Frequency Hopping Spread Sprectrum)

Utilizing IWAVE's proprietary algorithms and mechanisms FDM-6800 will internally calculate and evaluate the current link quality based on RSRP, SNR, and SER,ect. When predefined thresholds are met, the system initiates frequency hopping and selects the optimal frequency point from its database. Frequency hopping execution depends entirely on real-time wireless conditions:

1. No hopping occurs when link quality remains stable

2. The system maintains current frequency until conditions meet switching criteria

Scalable Self-Forming & Self-Healing Mobile Ad-Hoc Networks (MANETs) deliver resilient operation by dynamically discovering alternative routes and performing automatic failover during path disruptions. Ideal for:

●The smallest robotics system

●Pipeline detection/disposal
●Fire rescue
●Wireless Telemetry
●Wireless Video
●Control Systems
●UGV/Robot dog swarm

General

Wireless

Dual Frequency Band
