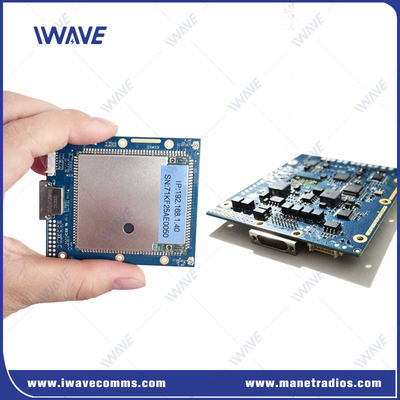

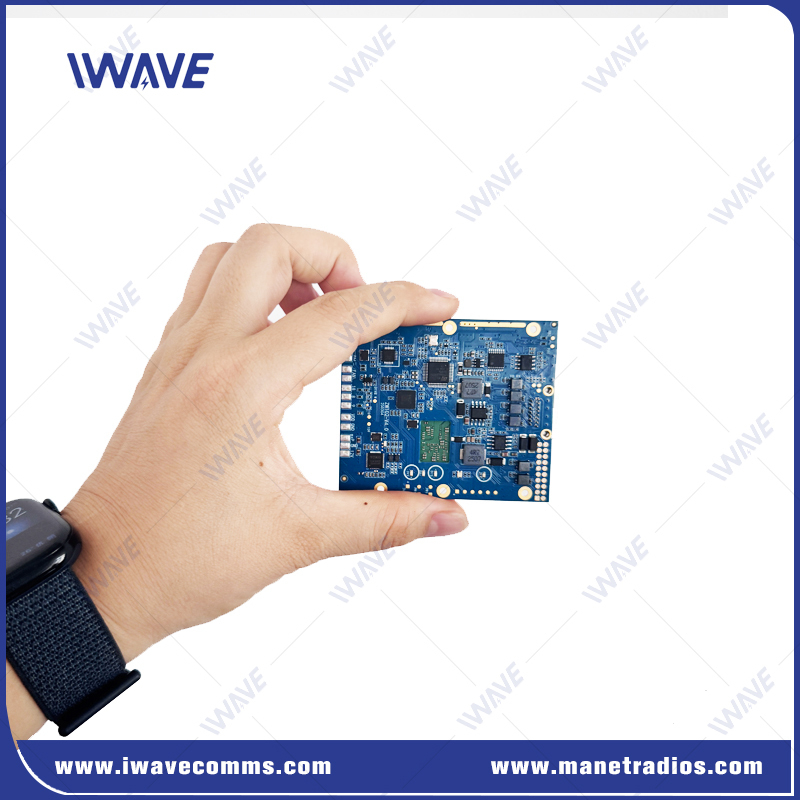

UHF UGV Data Link With AES Encryption Low Latency Video And Telemetry Data

Name: UHF UGV Data Link With AES Encryption Low Latency Video And Telemetry Data
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FDM-6800
Availability: InStock

Brand Name:	IWAVE
Model Number:	FDM-6800
MOQ:	2units
Price:	Negotiable
Delivery Time:	5-8working days
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

FDM-6800 Specs.pdf

Name:

UHF UGV Data Link With AES Encryption Low Latency Video And Telemetry Data

Bandwidth:

1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz

Dimension:

71*60*10mm

Technology:

PTMP Wireless Network

RF Power:

23dbm

Frequency:

UHF And L-Band

Wireless:

2X2 MIMO

Communication Range:

NLOS 1-3KM

Packaging Details:

Standard carton box

Supply Ability:

100000/month

Highlight:

UGV Data Link With AES Encryption

UHF UGV Data Link

Telemetry Data UGV Data Link

Product Description

UHF UGV Data Link With AES Encryption Low Latency Video And Telemetry Data

Introduction

FDM-6800 arranges video and telemetry and control channels for small drones and robots in unstable radio signal conditions.

FDM-6800 is based on enhanced ptmp wireless network technology for Tactical SDR For Mobile Robotics. A secure and powerful SDR platform for mobile robotics with unique multi-band, multi-waveform capabilities.

The combat-proven tactical radio is designed for versatility in a wide range of missions and operational environments, providing robust communication capabilities and extended network coverage across the complex environment.

The system offers wide frequency coverage across UHF bands and L-band, providing unprecedented immunity to interference, exceptional information security. Integrated service options can support simultaneous high-quality IP data, telemetry and mavlink data and hd video communication in a single network. Dedicated interfaces for video and data ensure smooth integration with the third party unmanned platform.

Key Features

Advanced UGV Datalink System – High-Performance Wireless Control

Key Features & Technical Advantages:

1.Enhanced Connectivity
- 2*2 MIMO technology delivers robust signal stability in dynamic environments
- 5W high-power output enables long-range operation (1-3km NLOS) with superior penetration
2.Military-Grade Security
- AES128 encrypted links prevent interception and unauthorized access
- Advanced anti-jamming with 300+ hops/sec frequency hopping
3.High-Speed Data Transmission
- 100-120Mbps throughput supports real-time HD video streaming
- Adaptive bandwidth allocation optimizes data flow
4.Scalable Network Architecture
- Supports 8-node mesh networks with flexible P2P/P2MP configurations
- Intelligent relay capability extends operational range
5.Compact Battlefield Solution
- Ultra-lightweight design (281g) with minimal footprint (12.7*9.4*1.8cm)
- Software-selectable dual-band (600MHz/1.4GHz) for mission adaptability

Auto Frequency hopping and Field-switchable Between 600MHz and 1.4GHz

The FDM-6800 is a Software-Defined Radio (SDR) and built on IWAVE's Switchable Frequency Architecture. This design allows users to select a suitable band between L-band and UHF band.

Band 1.4G: 1420-1530Mhz and UHF: 566-678Mhz

Users can switch between L-band and UHF frequencies on site through software. The entire operation process is simple and fast. So that users can continue to perform tasks quickly. Or users can open the frequency hopping function, the working frequency can auto hop the frequency between 600Mhz and 1.4Ghz to avoid the interference in complex RF environment.

Advanced Anti-Jamming Technology with Intelligent FHSS

Smart Frequency Hopping for Unbreakable Connections
The FDM-6800 series implements cutting-edge Adaptive Frequency Hopping Spread Spectrum (FHSS) technology with proprietary AI algorithms. Our system continuously monitors link quality in real-time using:

RSRP (Received Signal Strength)
SNR (Signal-to-Noise Ratio)
SER (Symbol Error Rate)

Key Advantages:

Intelligent Channel Assessment - Automatically selects optimal frequencies only when needed
Context-Aware Hopping - Maintains stable connections by avoiding unnecessary jumps
High Grade Reliability - frequency hopping capability for ECM environments

Easy Network Management

Simplify control with iWAVE’s intuitive management software—monitor nodes, track real-time topology, and optimize performance effortlessly.

Live network insights: View dynamic SNR, RSSI, and node distances
Full remote control: Adjust frequency bands, toggle FHSS, and modify IPs
Seamless integration: API support for third-party unmanned platforms
Advanced AT commands: Configure keys, frequency, bandwidth, and check firmware

Smart, scalable, and easy to manage—power your network with precision.

Application

iWAVE's UGV datalink enables secure, long-range communication between unmanned ground vehicles (UGVs) and control stations. Perfect for:

Military & Defense – Remote convoy operations & autonomous missions
Industrial Automation – Real-time control for logistics & inspection UGVs
Swarm Robotics – Seamless multi-UGV coordination
Robust Connectivity – Low-latency, high-bandwidth data transfer

Specification

General		Wireless
Technology	Star Network based on IWAVE proprietary time slot frame structure & waveform.	Communication	1T1R1T2R2T2R
Encryption	ZUC/SNOW3G/AES(128) Optional Layer-2	Data Link	Full duplex communication
Data Rate	Max 100Mbps(Uplink and Downlink)	Up and Down Ratio	2D3U/3D2U/4D1U/1D4U
Range	1-3km Non-line-of-sight	Auto Reconnection	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity	8nodes	Sensitivity
MIMO	2x2 MIMO	1.4GHZ	20MHZ
Power	23dBm±2 (2w, 5w or 10w on request)		10MHZ
Latency	End to end≤5ms-15ms		5MHZ
Modulation	QPSK, 16QAM, 64QAM	600MHZ	20MHZ
Anti-jam	FHSS(Frequency Hop Spread Spectrum)		10MHZ
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ
Power Consumption	5Watts	Dual Frequency Band
Power Input	DC5-32V	1.4Ghz	1420Mhz-1530MHz
Dimension and Weight	716010mm/33g	600Mhz	566Mhz-678Mhz
