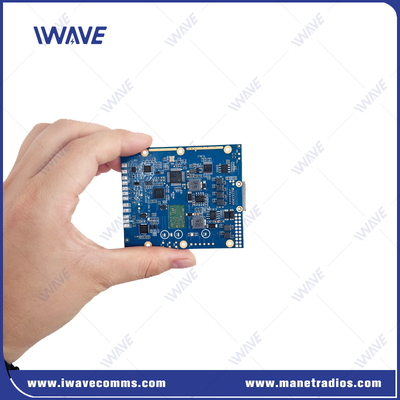

Bi-directional Data Link For Drones And Robotics

Name: Bi-directional Data Link For Drones And Robotics
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FDM-6800
Availability: InStock

Brand Name:	IWAVE
Model Number:	FDM-6800
MOQ:	2units
Price:	Negotiable
Delivery Time:	5-8working days
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

FDM-6800 Specs.pdf

Name:

Bi-directional Data Link For Drones And Robotics

Frequency Band:

566-678 And 1420-1530Mhz

Weight:

33g

Anti-jamming:

Frequency Hopping Spread Sprectrum

FHSS:

300hops/second

Bandwidth:

100-120Mpbs

Wireless:

2X2 MIMO

Communication Range:

NLOS 1-3KM

Packaging Details:

Standard carton box

Supply Ability:

100000/month

Product Description

Bi-directional Data Link For Drones And Robotics

Introduction

Advanced UGV Communication Solution for Remote Operations in Complex Environments

FDM-6800 provides robust video and control channels for drones and robotics in Non-line-of-sight (NLOS) conditions.

FDM-6800 is based on enhanced IP star network technology and IWAVE special high spectral efficiency waveform. This unique feature gives FDM-6800 an ability to support high throughput up to 120Mbps in the video channel and superior robustness in the control channel.

Video channel can be easily connected through the Ethernet interface. Ethernet, RS232/RS485 or TTL interfaces can be used for the control channel.

FDM-6800 supports point-to-point and point-to-multipoint network topologies. For high robustness, it is equipped with algorithms for suppression of narrowband and pulse interference. FDM-6800 supports also such interesting features as an adaptive transmission power control, TX-RX range estimation and IPv4 frames routing.

Key Features

●2x2 MIMO Technology: Stronger signal & stable connections

●5W High Power Output: long communication distance and strong penetration ability.

●AES128 Encryption: Security wireless link to prevent unauthorized access

●100-120Mbps Speed: Enable full HD video streamning transmission

●64-Node Network: 1 master controls 64 slave devices

●1-3km NLOS Range: Reliable ground-to-ground, non-line-of-sight

●P2P & P2MP Modes: Flexible networking options for one UGV or robotic swarms application.

●Dual-Band (600MHz/1.4GHz) – Software-selectable frequencies

●Strong Anti-jamming Ability – Multi-band sensing & fast hopping (300+ hops/sec)

●Ultra-Compact Design: 12.7×9.4×1.8cm, 281g

Dual-Band 600MHz & 1.4GHz Selectable Radio

IWAVE’s Star Network Technology enables seamless multi-band, multi-channel coordination in a single device. Switch effortlessly between L-band (1.4GHz) and UHF (600MHz) via software for superior penetration & anti-interference.

✔ Ultra-wide frequency selection: 1420–1530MHz & 566–678MHz
✔ Easy frequency switching: Instantly toggle between 600MHz & 1.4GHz with management software
✔ Enhanced reliability: Optimized for challenging environments

Anti-jamming: FHSS(Frequency Hopping Spread Sprectrum)

FDM-6800 adopts IWAVE team’s speical algorithm and mechanism to achieve frequency hopping function. During working, FDM-6800 will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list. Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.

Easy Network Management

Simplify control with iWAVE’s intuitive management software—monitor nodes, track real-time topology, and optimize performance effortlessly.

✔ Live network insights: View dynamic SNR, RSSI, and node distances
✔ Full remote control: Adjust frequency bands, toggle FHSS, and modify IPs
✔ Seamless integration: API support for third-party unmanned platforms
✔ Advanced AT commands: Configure keys, frequency, bandwidth, and check firmware

Smart, scalable, and easy to manage—power your network with precision.

Seamless Integration | iWAVE FDM-6800 UGV Datalink

Easily integrate long-range, high-bandwidth wireless connectivity into robotics and unmanned systems with iWAVE’s API, AT commands, 3D files, and expert support.

✔ Plug-and-play robotics integration – Ready for advanced autonomous applications
✔ Single-radio convoy & swarm solution – Connect manned & unmanned systems
✔ Full developer resources – API docs, AT commands, and 3D design files
✔ Battle-tested UGV datalink – Reliable control for unmanned ground vehicles

Deploy faster. Scale smarter. Unlock next-gen mobility.

Application

iWAVE's UGV datalink enables secure, long-range communication between unmanned ground vehicles (UGVs) and control stations. Perfect for:

✔ Military & Defense – Remote convoy operations & autonomous missions
✔ Industrial Automation – Real-time control for logistics & inspection UGVs
✔ Swarm Robotics – Seamless multi-UGV coordination
✔ Robust Connectivity – Low-latency, high-bandwidth data transfer

Specification

General		Wireless
Technology	Star Network based on IWAVE proprietary time slot frame structure & waveform.	Communication	1T1R1T2R2T2R
Encryption	ZUC/SNOW3G/AES(128) Optional Layer-2	Data Link	Full duplex communication
Data Rate	Max 100Mbps(Uplink and Downlink)	Up and Down Ratio	2D3U/3D2U/4D1U/1D4U
Range	200mw RF Power: 20km(Air to ground)	Auto Reconnection	Automatic link re-establishment after link failure/ re-deploy the network after a link failure
Capacity	64nodes	Sensitivity
MIMO	2x2 MIMO	1.4GHZ	20MHZ
Power	23dBm±2 (2w, 5w or 10w on request)		10MHZ
Latency	End to end≤5ms-15ms		5MHZ
Modulation	QPSK, 16QAM, 64QAM	600MHZ	20MHZ
Anti-jam	FHSS(Frequency Hop Spread Spectrum)		10MHZ
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz		5MHZ
Power Consumption	5Watts	Dual Frequency Band
Power Input	DC5-32V	1.4Ghz	1420Mhz-1530MHz
Dimension and Weight	716010mm/33g	600Mhz	566Mhz-678Mhz
