UGV Data Link For Low Latency Full HD Video And Telemetry Data

Introduction

Advanced UGV Communication Solution for Remote Operations in Complex Environments

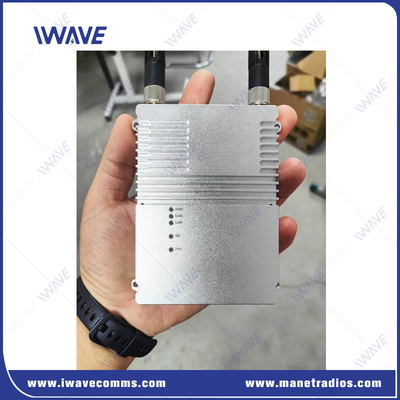

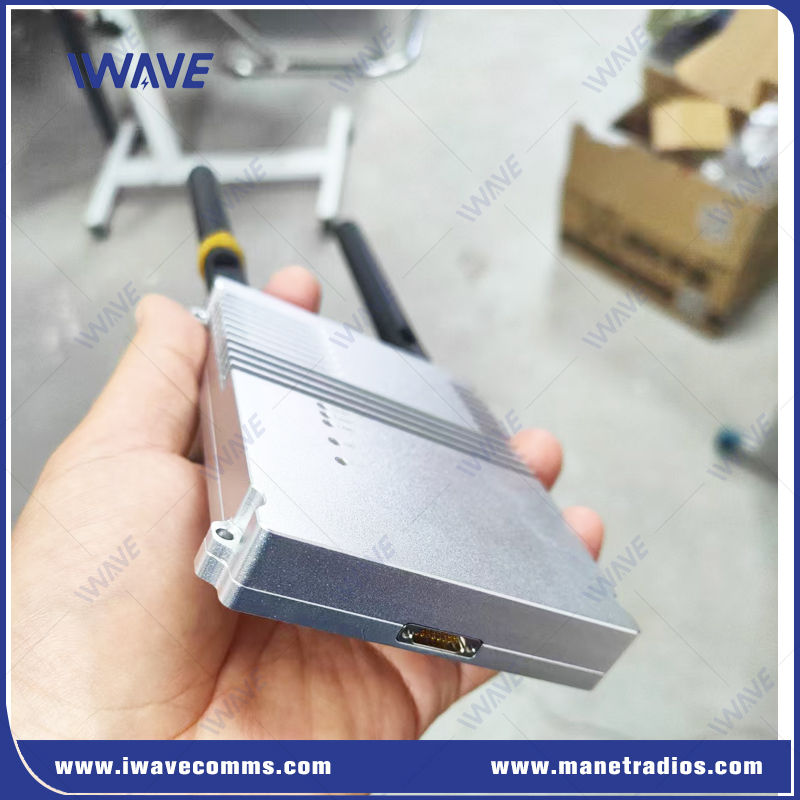

The FDM-6823UG UGV Communication System ensures high-bandwidth video transmission, real-time command and control (C2), system diagnostics, and telemetry data for unmanned ground vehicles (UGVs) operating in confined spaces, underground tunnels, pipelines, and urban structures. Designed for non-line-of-sight (NLOS) missions, this robust solution enables secure, long-range remote control and live situational awareness even in challenging urban and remote environments.

Utilizing cutting-edge IP star network architecture and high-speed frequency-hopping spread spectrum (FHSS) technology, the FDM-6823UG delivers reliable HD video streaming and data transfer for tele-robotic operations in harsh conditions. Ideal for military, industrial, and search-and-rescue applications, this system ensures uninterrupted connectivity from a safe standoff distance.

Key Features

●2x2 MIMO Technology: Stronger signal & stable connections ●5W High Power Output: long communication distance and strong penetration ability. ●AES128 Encryption: Security wireless link to prevent unauthorized access ●100-120Mbps Speed: Enable full HD video streamning transmission ●64-Node Network: 1 master controls 64 slave devices ●1-3km NLOS Range: Reliable ground-to-ground, non-line-of-sight ●P2P & P2MP Modes: Flexible networking options for one UGV or robotic swarms application. ●Dual-Band (600MHz/1.4GHz) – Software-selectable frequencies ●Strong Anti-jamming Ability – Multi-band sensing & fast hopping (300+ hops/sec) ●Ultra-Compact Design: 12.7×9.4×1.8cm, 281g

Anti-jamming: FHSS(Frequency Hopping Spread Sprectrum)

FDM-6823PTM adopts IWAVE team’s speical algorithm and mechanism to achieve frequency hopping function. During working, FDM-6823PTM will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list. Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.

FDM-6823PTM: High-Speed Wireless Communication with Advanced Carrier Aggregation (CA) Technology
The FDM-6823PTM leverages cutting-edge Carrier Aggregation (CA) technology, combining dual 20MHz bandwidth carriers to create a seamless 40MHz wireless channel. This breakthrough significantly boosts uplink/downlink speeds, enhances signal reliability, and improves environmental adaptability for mission-critical wireless systems.

FDM-6823UG: Long-Range NLOS UGV Communication System for Advanced Robotics
The FDM-6823UG delivers ultra-long-range wireless connectivity up to 3km, even in non-line-of-sight (NLOS) environments—perfect for UGVs, robotic swarms, and unmanned convoy operations. Featuring ultra-high sensitivity (-102dBm/20MHz), dual-band support, and advanced frequency-hopping spread spectrum (FHSS) technology, this robust datalink ensures high-bandwidth, low-latency communication in the most challenging conditions.

Application

✔ Autonomous UGVs & Robotics – Persistent connectivity for exploration, logistics, and ISR missions.
✔ Military & Defense Ops – Secure, long-range datalink for unmanned convoys and C2 systems.
✔ Industrial & Public Safety – Reliable NLOS communication for search & rescue, pipeline inspection, and hazardous area monitoring.

Engineered for resilience, the FDM-6823UG is the ultimate wireless solution for extended-range robotic operations.

Specification
