| Brand Name: | IWAVE |
| Model Number: | FDM-6823FT |
| MOQ: | 2units |
| Price: | Negotiation |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T |
Model: FDM-6823FT

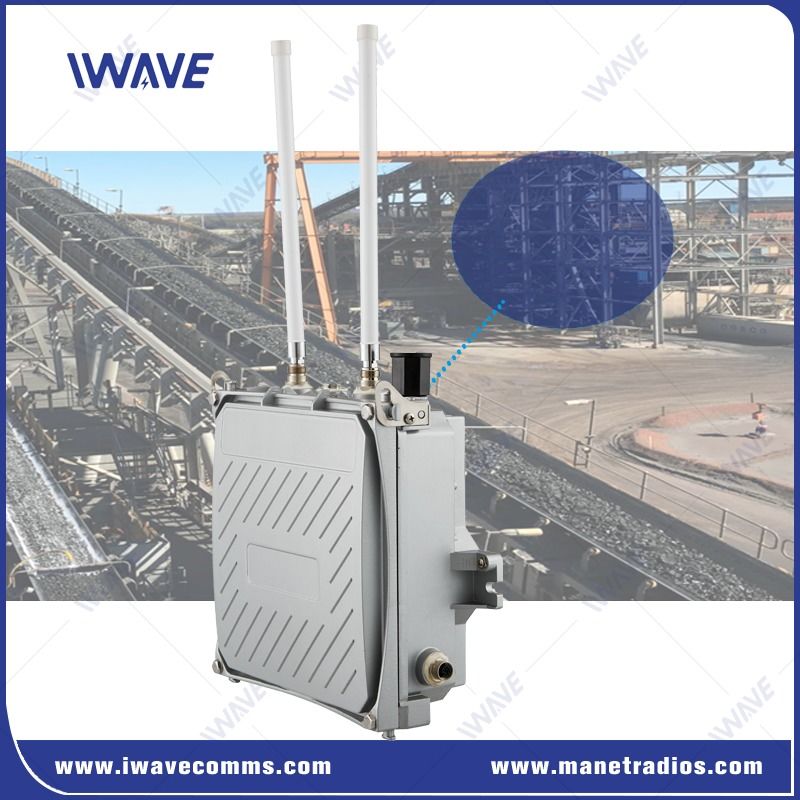

2X2 MIMO Outdoor Wireless IP Link For NLOS Video Transmitting
FDM-6823FT is a high data rate communication device with wireless broadband transmission technology. It adopts star networking working mode to provide IP transparent transmission channels for upper layer applications such as video, voice, and data.
Automatically negotiates routes with all nodes through the link layer, without manual configuration, plug-to-play. It can quickly build a communication network anytime and anywhere with the characteristics of rapid deployment, high compatibility, low power consumption, and high bandwidth.
FDM-6823FT provides wired Ethernet interface, WLAN wireless network and other access methods to facilitate other mobile terminals to access the network.
Features
Frequency-Hopping Spread Spectrum(FHSS)
Regarding to the frequency hopping function, IWAVE team has their own algorithm and mechanism.
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list.
Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
MESH Network Management Software
IWAVE self-developed MESH network management software will real time show you the topology, RSRP, SNR, distance, IP address and other information of all the nodes. The software is WebUi based and you can login it anytime anywhere with IE browser. From the software, you can configure the settings per your requirement, such as working frequency, bandwidth, IP address, dynamic topology, real time distance between nodes, algorithm setting, up-down sub-frame ratio, AT commands, etc.
Application
FDM-6823FT is suitable for outdoor deployment as a mobile and fixed site system employed in terrestrial, airborne and maritime environments. Such as border surveillance, mining operations, remote oil and gas operations, urban backup communication infrastructure, private microwave networks etc.
Specification
|
GENERAL |
|||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | MOUNTING | POLE MOUNT |
| ENCRYPTION | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 | ||
|
MECHANICAL |
|||
| NETWORKING TIME | ≤5s | TEMPERATURE |
-20℃~+55℃ |
| DATE RATE | 30Mbps (Uplink and Downlink) | Waterproof | IP66 |
| DIMENSIONS | 216*216*70mm | ||
| SENSITIVITY | 10MHz/-103dBm | WEIGHT | 3kg |
| RANGE | LSO 10km-30km (Ground to ground)(Depends on the actual environment) | MATERIAL | Aluminum Alloy |
| NODE | 64 nodes | MOUNTING | Pole-mounted |
| MIMO | 2*2 MIMO |
POWER |
|
| POWER | 2watts | VOLTAGE |
DC24~27V Or AC |
| MODULATION | QPSK, 16QAM, 64QAM | POWER CONSUMPTION | 30watts |
| ANTI-JAM | Automatically frequency hopping |
INTERFACES |
|
| LATENCY | End to END: 60ms-80ms | RF | 2 x N-Type |
|
FREQUENCY |
ETHERNET | 1xRJ45 | |
| 1.4Ghz | 1.4G(1420-1530Mhz) | ||
| 600Mhz |
600Mhz(566-678Mhz) |
||
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -102dBm |
| 10MHZ | -100dBm | |
| 5MHZ | -96dBm | |
| 800MHZ | 20MHZ | -102dBm |
| 10MHZ | -100dBm | |
| 5MHZ | -96dBm | |
| INTERFACES | |||

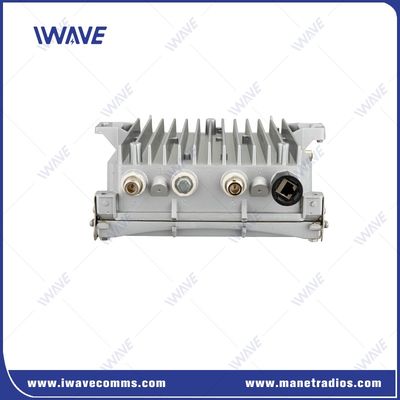

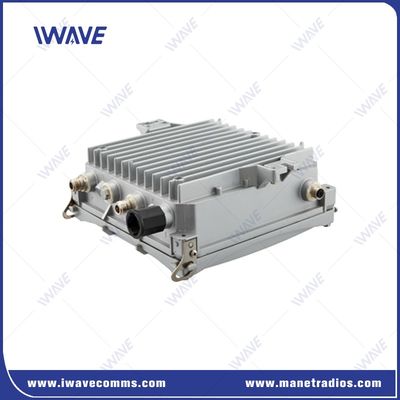

| RF | 2 x N-Type Antenna Port | ||
| PWER INPUT | 1 x Ethernet Port(POE 24V) | ||
| Other | 4*Mounting Holes | ||
Video
Video
Video
Video
Video
Video
Video
Video
|
|
