| Brand Name: | IWAVE |
| Model Number: | Defensor-BL8 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
No Infrastructure Solution Narrowband RF Mesh Vhf Uhf Base Station Solar Powered
Introduction

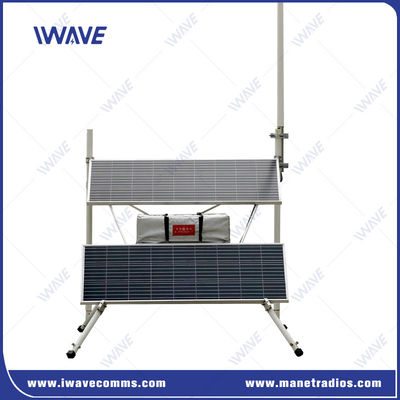

IWAVE is Manufacture Off Grid Solar Powered Radio Base station and VHF Radio Repeater is commercial grade, fixed station and portable Solar Powered Repeaters for VHF Land Mobile, VHF Marine & Aviation. Our radio base station are designed for low current, solar powered applications primarily at base station & mountain-top sites.
A great product for Mining, Marine, and Oil Exploration where reliable, low current, long range communications is key.
Defensor-BL8 is ad-hoc long range radio repeater, which is designed to bring an innovative networking solution for safe and reliable communications in the urban area, wildland, forest, and other places with the absence of network infrastructure.The repeater adopts wireless interconnection technology to quickly create multi-hop narrowband networks through cascading connection, free of any IP link such as fiber optic and microwave. The repeater can repeat voice services on dual channels at the same time.
Features
Large Area Coverage: Hundreds of Kilometers
Automatic networking
Flexible Installation without relying on pre-existing infrastructure
Application
In places where communication infrastructure is not available or have been damaged by natural or man-made disaster, it is highly desirable to provide critical communications so desperately needed to support operations.
IWAVE MANET Radio is often the only reliable means of communications in critical conditions.

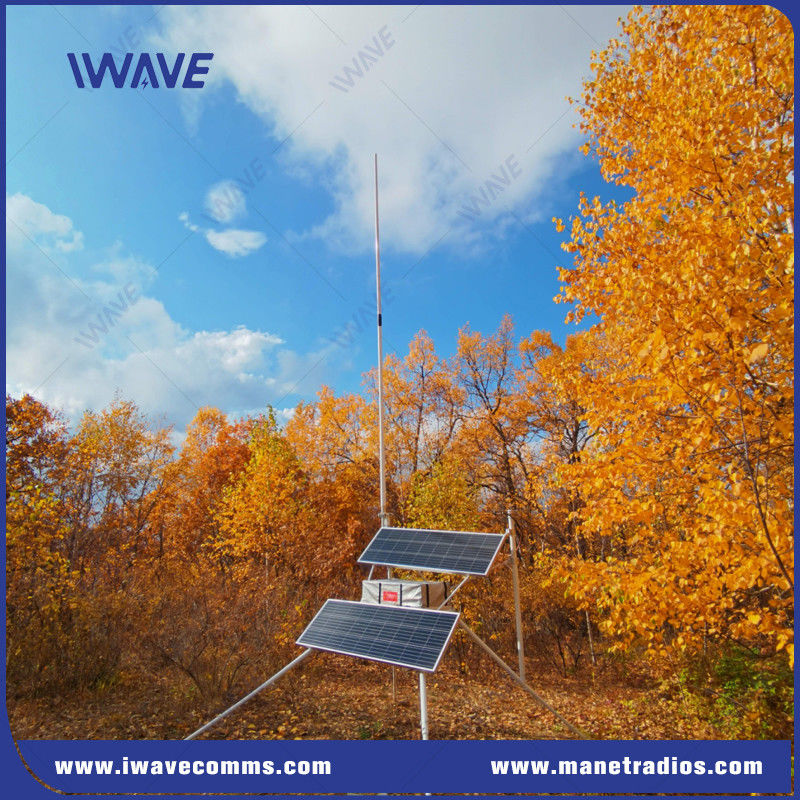

A single BL8 unit deployed at an elevated position delivers 70-80km operational range. When two BL8 units are strategically positioned at different heights, coverage expands up to 200km. The system also features multi-hop networking functionality, enabling further extension of MANET radio coverage across wider areas and longer distances.
Specifications
| Solar Powered Adhoc Radio Base Station(Defensor-BL8) | |||
| General | Transmitter | ||
| Frequency | 136-174/350-390/400-470Mhz | RF Power | 25W(50W on request) |
| Standards Supported | Adhoc | Frequency Stability | ±1.5ppm |
| Battery | 100Ah/200Ah/300Ah for option | Adjacent Channel Power | ≤-60dB (12.5KHz) ≤-70dB (25KHz) |
| Operation Voltage | DC12V | Spurious Emission | <1GHz: ≤-36dBm >1GHz: ≤ -30dBm |
| Solar Panel Power | 150Watts | Digital Vocoder Type | NVOC&Ambe++ |
| Solar Panel Quantity | 2Pcs | Environment | |
| Receiver | Operating Temperature | -40°C ~ +70°C | |
| Digital Sensitivity (5% BER) | -126dBm(0.11μV) | Storage Temperature | -40°C ~ +80°C |
| Adjacent Channnel Selectivity | ≥60dB(12.5KHz)≤70dB(25KHz) | Operating Humidity | 30% ~ 93% |
| Intermodulation | ≥70dB | Storage Humidity | ≤ 93% |
| Spurious Response Rejection | ≥70dB | GNSS | |
| Blocking | ≥84dB | Positioning Support | GPS/BDS |
| Co-channel suppression | ≥-8dB | TTFF(Time To First Fix) Cold Start | <1 minute |
| Conducted Spurious Emission | 9kHz~1GHz: ≤-36dBm | TTFF(Time To First Fix) Hot Start | <10 seconds |
| 1GHz~12.75GHz: ≤ -30dBm | Horizontal Accuracy | <5metres CEP | |
