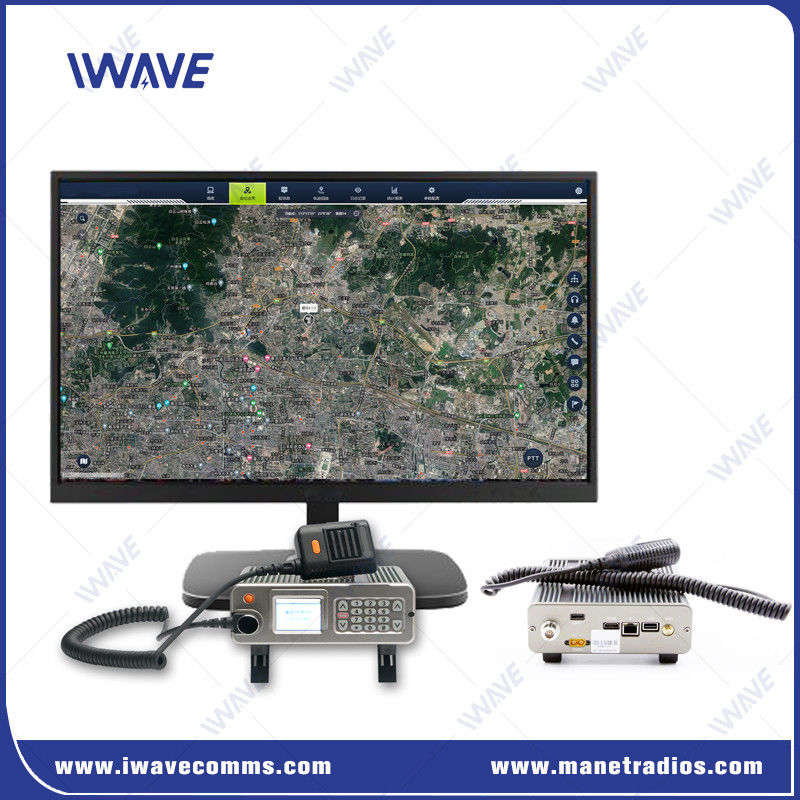

Team Mobile Wireless Emergency Radio System For Vehicles and Command Center

• Infrastructure-Independent Operation

Unlike traditional communication systems (DMR VHF/UHF, cellular, or satellite networks), which depend on fixed infrastructure, MANET radios operate without reliance on ground-based towers or centralized hubs.

• Rapidly Deployable Network

Establish a mobile command center anywhere—simply deploy pre-configured MANET radios to remote units for instant connectivity.

Features a one-touch emergency button that instantly shares the user’s GPS coordinates for real-time tracking.

Supports multiple power sources, including vehicle batteries, solar panels, and generators, ensuring uninterrupted operation even without grid electricity.

• Wide Coverage and Self-Forming Connectivity

MANET radios automatically link with any other unit in the network, enabling seamless worldwide communication—no pre-existing infrastructure required.

1. PTT Key (Push-to-Talk Key)
2. Emergency Call Key
3. Power On/Off Key
4. Switch Group/Channel
5. Volume Key
6. RF Antenna Port
7. Programming Port
8. HDMI Input Port
9. IP Input Port
10. WIFI Antenna Port

Display Screen: Utilizes a TFT display screen with low power consumption, providing clear visibility of device information even in bright lighting conditions.

MIC/SP (Microphone/Speaker): Interface for microphone connection, enabling monitoring and calling functions.

UART: Utilizes the dedicated IWAVE programming device through this interface to manage device information and read/write data.

ANT: Antenna port for connecting the corresponding feeder.

HDMI: High-definition display interface.

USB: Interface for mouse and keyboard connections.

Frequency Options

VHF: 136-174MHz

UHF1: 350-390MHz

UHF2: 400-470MHz

Channel Spacing

12.5kHz

Sensitivity (5% BER) (Digital)

Static Sensitivity

-117dBm

Multiple Access Method

Dynamic Sensitivity

-110dBm

Modulation and Demodulation

Sensitivity (12dB SINAD) (Analog)

Continuous Data Rate (Per Carrier)

9.6kbps

Maximum Signal Receive Level

-7dBm

Carrier Frequency Error

±0.1ppm

Adjacent Channel Selectivity

-65dB@12.5KHz/-70dB@25KHz

Operating Humidity

20% ~ 80%

Co-Channel Rejection

12dB

 Storage Humidity

<80%

Blocking

84dB

Dimension

65.5×159×166.5mm

Intermodulation

70dB

Weight

3.1kg

Spurious Response Rejection

70dB

Operating Temperature

-30℃ ~ 60℃

Conducted Spurious Emission

-57dB

 Transmitter

±0.1 ppm

Maximum Tolerance for Output Power Variation

±1.5dB(Normal)/+2/-3dB(Extreme)

RF Output Power

5~20Watts Adjustable

Adjacent Channel Power

-65dB@12.5KHz/ -75dB@25KHz

Conducted/Radiated Interference (Antenna Port) (Transmission Mode)

9kHz~1GHz≤-36dBm

1GHz~12.75GHz≤-30dBm

Conducted/Radiated Interference (Antenna Port) (Idle Mode)

30MHz~1GHz≤-36dBm

1GHz~12.75GHz≤-30dBm

Intermodulation Attenuation

≤-60dB@12.5KHz / ≤-70dB@25KHz

Adjacent Channel Power during Instantaneous Switching

±12.5kHz≤-50dB

±25kHz≤-60dB
