| Brand Name: | IWAVE |
| Model Number: | Defensor-T6 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 5-8working days |
| Payment Terms: | T/T,L/C,D/P |
Multimedia Communication Platform For No Infrastructure Mission Critical Radios Solution
Introduction
IWAVE MANET tactical radios system forms a robust, self-forming, self-healing wireless network for public safety, emergency response, energy, and humanitarian missions-critical communication.

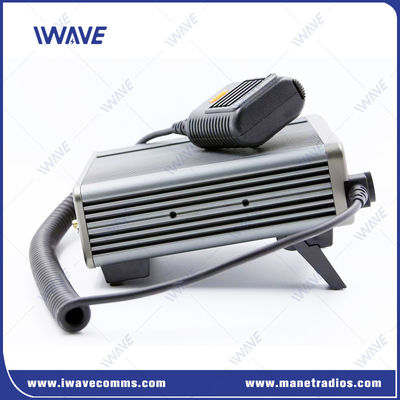

Defensor-T6 serves as the nerve center for command personnel, enabling real-time coordination, rapid decision-making, and mission-critical communication in public safety, emergency response, and industrial operations. Its role is indispensable in ensuring efficient resource allocation, situational awareness, and operational success.
In places where communication infrastructure is not available or have been damaged by natural or man-made disaster, it is highly desirable to provide critical communications so desperately needed to support operations.
IWAVE tactical MANET Radio network is the only infrastructure independent communications solution that can provide support in places where communications infrastructure is either non-existent or severely damaged.
Key Features
|
|
Interface
|
|
|

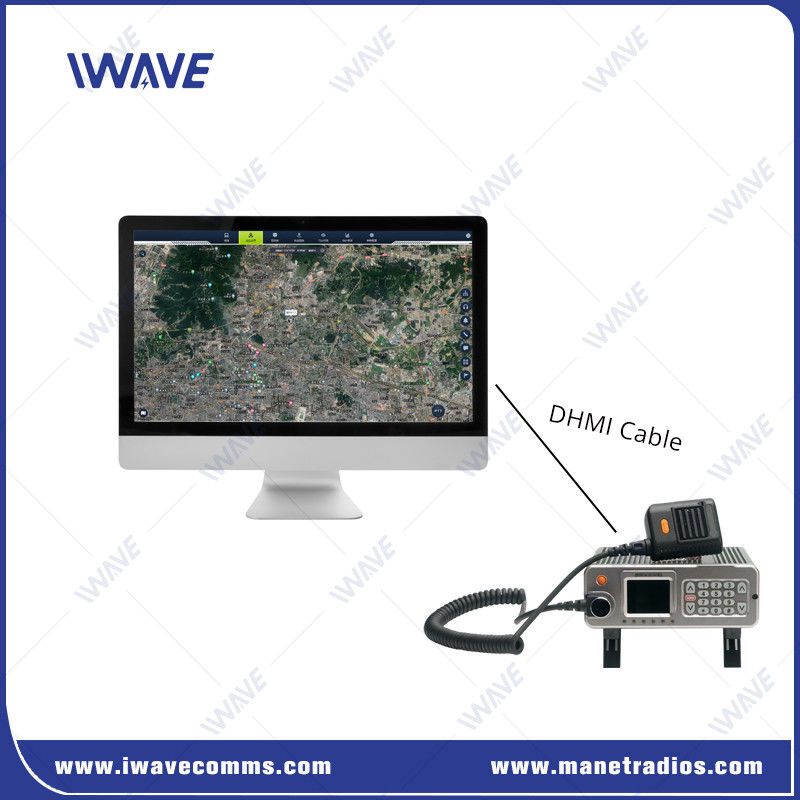

Display Screen: Utilizes a TFT display screen with low power consumption, providing clear visibility of device information even in bright lighting conditions. MIC/SP (Microphone/Speaker): Interface for microphone connection, enabling monitoring and calling functions. UART: Utilizes the dedicated IWAVE programming device through this interface to manage device information and read/write data. ANT: Antenna port for connecting the corresponding feeder. HDMI: High-definition display interface. USB: Interface for mouse and keyboard connections. |
Application
The IWAVE MANET tactical radio system creates a resilient, self-organizing communication network that automatically maintains connectivity even in challenging environments. This advanced wireless solution supports vital operations across public safety agencies, emergency responders, energy sector teams, and humanitarian relief efforts by enabling seamless coordination between command centers, mobile field units, and remote technical specialists - ensuring reliable communications regardless of location or terrain conditions.
Specification
|
Frequency Options |
VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
Receiver | |||
|
Channel Spacing |
12.5kHz |
Sensitivity (5% BER) (Digital) |
Static Sensitivity |
-117dBm |
|
|
Multiple Access Method |
TDMA |
Dynamic Sensitivity |
-110dBm |
||
|
Modulation and Demodulation |
4FSK |
Sensitivity (12dB SINAD) (Analog) |
-117dBm | ||
|
Continuous Data Rate (Per Carrier) |
9.6kbps |
Maximum Signal Receive Level |
-7dBm |
||
|
Carrier Frequency Error |
±0.1ppm |
Adjacent Channel Selectivity |
-65dB@12.5KHz/-70dB@25KHz |
||
|
Operating Humidity |
20% ~ 80% |
Co-Channel Rejection |
12dB |
||
|
Storage Humidity |
<80% |
Blocking |
84dB |
||
|
Dimension |
65.5×159×166.5mm |
Intermodulation |
70dB |
||
|
Weight |
3.1kg |
Spurious Response Rejection |
70dB |
||
|
Operating Temperature |
-30℃ ~ 60℃ |
Conducted Spurious Emission |
-57dB |
||
|
Transmitter |
|||||
| Frequency Stability |
±0.1 ppm |
Maximum Tolerance for Output Power Variation |
±1.5dB(Normal)/+2/-3dB(Extreme) |
||
|
RF Output Power |
5~20Watts Adjustable |
Adjacent Channel Power |
-65dB@12.5KHz/ -75dB@25KHz |
||
|
Conducted/Radiated Interference (Antenna Port) (Transmission Mode) |
9kHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
Conducted/Radiated Interference (Antenna Port) (Idle Mode) |
30MHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm |
||
|
Intermodulation Attenuation |
≤-60dB@12.5KHz / ≤-70dB@25KHz |
Adjacent Channel Power during Instantaneous Switching |
±12.5kHz≤-50dB ±25kHz≤-60dB |
||
