| Brand Name: | IWAVE |
| Model Number: | FDM-6802UGV |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

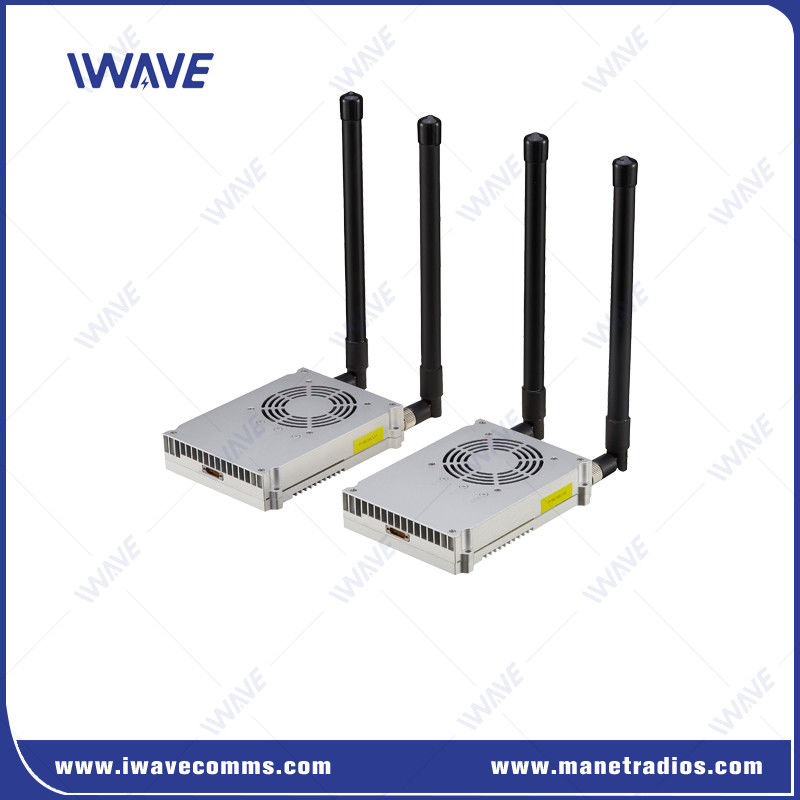

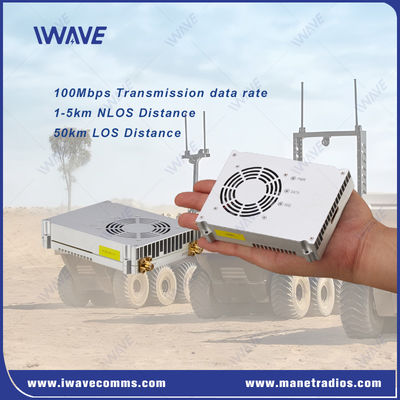

Wireless IP Digital Data Transceiver For NLOS Video and Data Communication
Description
FDM-6802UGV is a wireless transmission product designed by IWAVE based on mature SOC chipset, 2watts power, 2X2 MIMO. Provide wireless communication link of HD video, data and serial control data based on IP.
This digital data link provides a robust and secure link in the 600 MHz and 1.4G frequency band Supports Ethernet and full duplex telemetry data transmission.
It supports WEBUI/management software for network management and parameters configurable.
Key Features
FDM-6802UGV adopts star networking working mode to provide IP transparent transmission channels for upper layer applications such as video and data.
FDM-6802UGV adopts the two-layer high dynamic networking protocol independently developed by the IWAVE team to achieve a good adaptability to wireless network environments, dynamic networking performance and transmission capabilities.
FDM-6802UGV automatically negotiates routes with all nodes through the link layer, without manual configuration, plug-to-play. It can quickly build a communication network anytime and anywhere with the characteristics of rapid deployment, high compatibility, low power consumption, and high bandwidth.

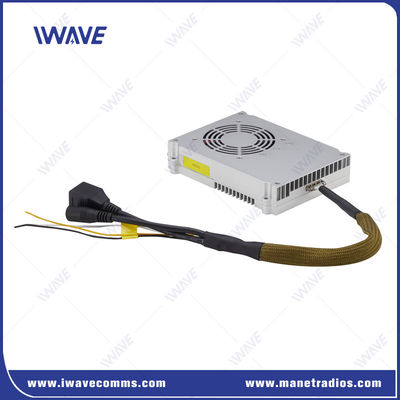

FDM-6802UGV adopts J30 aviation plug interface, supports multiple serial port communication and Ethernet communication, and provides wired Ethernet access and data serial port.
Technology Advantage
It adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system.
1. Supports a larger total bandwidth, supports 20MHz+20MHz carrier aggregation, and the data transmission peak rate exceeds 100Mbps.
2. Supports continuous carrier aggregation and non-continuous carrier aggregation, which is more flexible.
3. Supports carrier aggregation of different bandwidths, and can adjust the bandwidth of carrier aggregation according to environmental interference and available spectrum resources, making it easier to adapt to different scenarios.
4. Retransmit on different carriers to avoid data interruption after a single carrier is interfered.
5. Supports frequency hopping of different carriers to more effectively find interference-free carriers.
The FDM-6802UGV is an ideal solution for industries requiring a reliable, adaptable, and high-performance wireless transmission system for critical video and data communication tasks.
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
2watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
86*120*24.2mm |
600Mhz |
634Mhz-674Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
