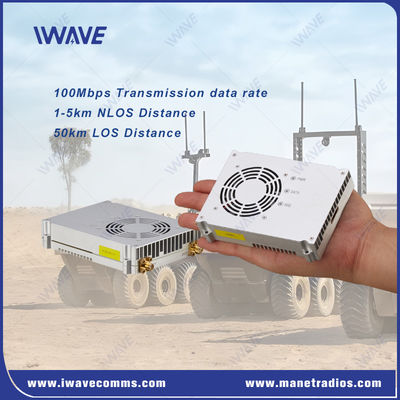

100Mbps Wireless Point To MultiPoint Transceiver For HD Video And Data Communication

100Mbps Wireless Point To Multi-Points Transceiver For HD Video And Data Communication

Description

FDM-6802PTM is a wireless transmission product designed by IWAVE based on mature SOC chipset, 2watts power, 2X2 MIMO. Provide wireless communication link of HD video, data and serial control data based on IP. FDM-6802PTM is designed based on CA (Carrier Aggregation), MIMO technologies. It doesn't rely on any carrier's base station. This digital data link provides a robust and secure link in the 600 MHz and 1.4G frequency band Supports Ethernet and full duplex telemetry data transmission. Anti-jamming: It adopts the Automatic frequency hopping technology(FHSS) and adaptive modulation for anti-interference. Builds a point to point and point to multiple point network with 8 nodes.

Key Features

• Frequency Bands: Operates in the 600 MHz and 1.4 GHz bands without relying on carrier base stations.
• MIMO and CA: Utilizes Carrier Aggregation and 2x2 MIMO technologies to deliver reliable, high-bandwidth communication links.
• It supports100Mpbs transmission data rate
• IP Transparency: Offers IP transparent transmission for seamless integration with video and data applications.
• Automatic Networking: Supports plug-and-play operation with automatic route negotiation and dynamic networking for up to 8 nodes in point-to-point or point-to-multipoint configurations.
• J30 Aviation Plug Interface: Facilitates multiple serial port and Ethernet communication connections.
• Ethernet and Full-Duplex Telemetry: Supports wired Ethernet access and full-duplex data transmission.
• Rapid Deployment: Features rapid setup, high compatibility, low power consumption, and high bandwidth for immediate operation in diverse scenarios.

Technology Advantage

FDM-6802PTM adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system.

1. Supports a larger total bandwidth, supports 20MHz+20MHz carrier aggregation, and the data transmission peak rate exceeds 100Mbps.
2. Supports continuous carrier aggregation and non-continuous carrier aggregation, which is more flexible.
3. Supports carrier aggregation of different bandwidths, and can adjust the bandwidth of carrier aggregation according to environmental interference and available spectrum resources, making it easier to adapt to different scenarios.
4. Retransmit on different carriers to avoid data interruption after a single carrier is interfered.
5. Supports frequency hopping of different carriers to more effectively find interference-free carriers.

Why Choose FDM-6802PTM?

• High Bandwidth: Efficiently handles video and data communication with low latency.
• Anti-Interference: Advanced FHSS and adaptive modulation ensure uninterrupted operation in challenging RF environments.
• Plug-and-Play: Simplifies deployment with automatic configuration and dynamic networking.
• Durable and Flexible: The J30 aviation plug interface and multiple communication options make it suitable for various rugged applications.

The FDM-6802PTM is an ideal solution for industries requiring a reliable, adaptable, and high-performance wireless transmission system for critical video and data communication tasks.

Command Interface

Specification
