30KM Drones Video and Flight Control Data Radio Links
FIM-2430 is a transmitter for 30-35km long distance HD Drone Video and Duplex TTL Data transmitting. It is new designed based on TDD-OFDM modulation. Its working frequency 2.402-2.478Ghz is adjustable by software. It is Ethernet and bi-directional data transmission with 50ms latency for 1080P video.
It is Special design for UAV application with mini size and light weight(146g).
Features
Ø Air to ground 30-35km (LOS) with better 1080P video quality
Ø Video compression H.264 technology + H.265's Algorithms
Ø Support Video and Duplex Data for bi-directional
Ø Support pixhawk 2 /cube/v2.4.8/4 , Apm 2.8
Ø Support TTL/MAVLINK/Telemetry/TCP/IP/UDP via Ethernet port
Ø Support both HDMI and IP Camera connected at same time.
Ø 50ms latency for 1080P video
Offering control, telemetry & payload, video Bi-directional transmission in 1 RF channel for 30km
LONG transmission distance and strong diffraction capability, Real-time and Low Latency, HIGH-SPEED connectivity.

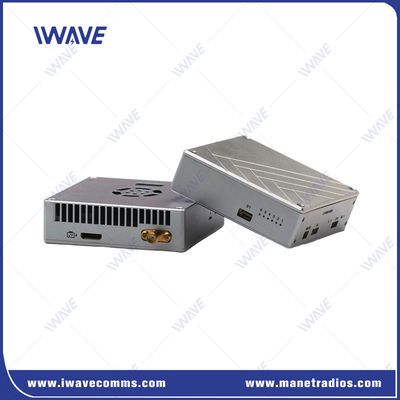

CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation.

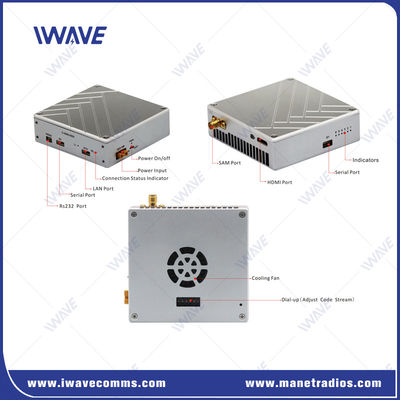

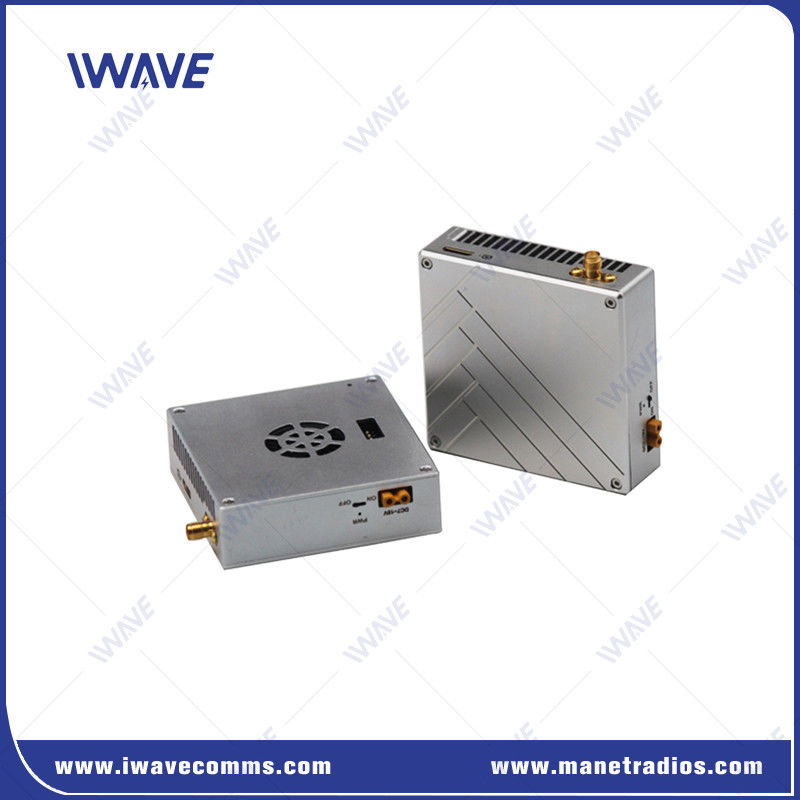

Interface
Application
Special designed for UAV air to ground LOS 30km HD video and flight control data transmitting for aerial photography, News, sports events, hidden investigation, video surveillance, real-time wireless video transmission and other fields.
Ideal for medium and large long-distance UAVs such as Multi-rotor UAVs, Fixed-wing UAVs, and VTOL Fixed Wing UAV etc.
Specification
| Frequency | 2.4GHz(2.402-2.482GHz) |
| Error Detection | LDPC FEC/Video H.264/265 Super Error Correction |
| RF Transmitted Power | 2Watts |
| Power Consumption | TX: 17Watts/RX: 6Watts |
| Distance | 30km |
| Bandwidth | 4/8MHz |
| Video Input/output Interface | On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX |
| Bit rate and channel adjustment mode | DIP or SPI2MCU |
| Antenna | 1T1R/ Tx: 5db(Omni Antenna) /Rx: 14dbi 90°Directional Antenna |
| Video Color Space | Default 4:2:0 |
| Video Compressed Format | AVC adds H.265 feature TS stream |
| Bit rate | Software adjustment |
| Encryption | AES128 |
| Transmission Mode | point to point |
| Start-up time | 25s |
| Latency | 50ms |
| Transmission Rate | 3-5Mbps |
| Receive Sensitivity |
-100dbm@4Mhz -95dbm@8Mhz |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support TTL/MAVLINK/Telemetry |
|
Interface (same interface on TX & RX) |
1. 1080P 60 HDMI Mini RX x1 |
| 2. 100Mbps Ethernet to USB / RJ45 on Windows x1 | |
| 3. S1 TTL bidirectional serial port x1 | |
| 4. S2 TTL bidirectional serial port x1 | |
| 5. Power Input (DC7-18V) x1 | |
| Indicator Light | HDMI input/output indicator light |
| Transmitting and receiving indicator light | |
| Video board indicator light | |
| Power light | |
| HDMI | HDMI mini/Flexible Flat Cable(FFC) |
| Appearance Design | CNC technology/double aluminum alloy shell with waterproof design |
| Power supply | DC 7- 18V (DC 12V advised) |
| Temperature Range |
Operating temperature: -40°C ~+85°C Storage temperature: -55°C ~ +100°C |
| Dimension | Tx: 74x71x23mm/ Rx: 74×71×23mm |
| Weight | Tx: 148g, Rx: 148g |
