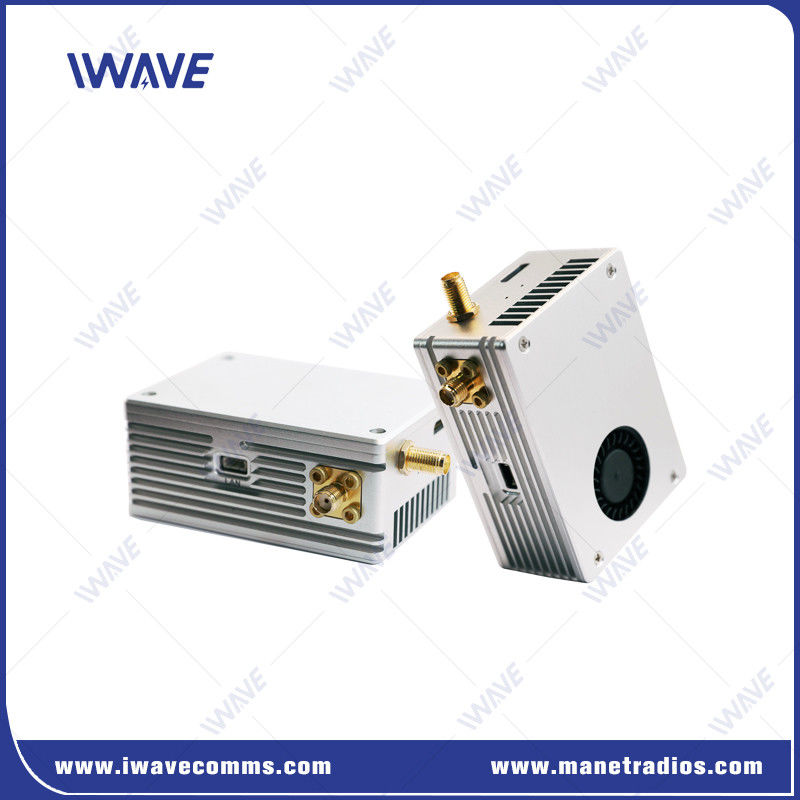

50KM HD SDI / HDMI Wireless Video Transmitter For Drone UAV Link

Name: 50KM HD SDI / HDMI Wireless Video Transmitter For Drone UAV Link
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FIM-2450
Availability: InStock

Brand Name:	IWAVE
Model Number:	FIM-2450
MOQ:	1SET
Price:	Negotiable
Delivery Time:	5-8DAYS
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

MIC, CE

Document:

FIM-2450 Specs.pdf

Frequency:

1.4Ghz

Weight:

160g

Latency:

50ms

Modulation:

QPSK

Antenna:

2T2R

Transmit Range:

50KM

Dimension:

73.8 X 54 X 31 Mm

Power Consumption:

Tx: 17watts/Rx: 6watts

Packaging Details:

Standard exporting package

Supply Ability:

1Set

Highlight:

HD SDI Wireless Video Transmitter

HDMI Wireless Video Transmitter

50KM Wireless Video Transmitter

Product Description

50KM HD SDI/HDMI Wireless Video Transmitter for drone UAV link

Wireless Networking for Drones

IWAVE low-SWaP datalinks are field-proven for the uniquely dynamic comms challenges faced by UAVs.

The FIM-2450 can downlink real-time video images, LAN and serial data, and information from a wide range of sensors, with a range of up to 50km, and provides superior reliability and performance even under the harshest of conditions.

Key Features

COFDM bi-directional link with video/telemetry/RC
Receiving diversity and dynamic antenna switching
H.264 & H265video compression & decompression
Low level re-transmission and adaptive frequency hopping
AES128 encryption implemented on FPGA
System Dealy: 50ms
RF Power: 2W (Bi-Amp, 2W Peak Power of each power amplifier)
Video Input: HDMI+SDI+IP
Resolution: Full HD 1080P(1080*1920)
Transmission Distance: Air to Ground 50 km
Weight: Tx: 146g Rx: 160g

Application:

ISR Data Links
Telemetry & Video Streaming
Commanding & Control
Radio Control Range Extender
Wireless Networks for drones/vtol/uav

Specification

Frequency	1.4Ghz	1430~1444 MHz
Bandwidth	2/4/8MHz
RF Power	2W (Bi-Amp, 2W Peak Power of each power amplifier)
Transmit Range	50km
Transmit Rate	1.5/3/6Mbps (Video code stream and serial data) The best video stream: 2.5Mbps
Baud Rate	115200(Adjustable)
Rx Sensitivity	-100/-95/-90dbm
Wireless Fault Tolerance Algorithm	Wireless baseband FEC forward error correction / video codec super error correction
Video Latency	Latency for encoding + transmission + decoding 720P/60 <50 ms 1080P/60 <80ms
Link Rebuild Time	<1s
Modulation	Uplink QPSK/Downlink QPSK
Video Compression Format	H.264
Video Color Space	4:2:0 (Option 4:2:2)
Encryption	AES128
Start Time	25s
Power	DC-12V (10～18V)
Interface	Interfaces on Tx and Rx are same Video input/Output: Mini HDMI×1 Video input/output: SDIx1 Power Input Interface×1 Antenna Interface: SMA×2 Serial×2: (Voltage:+-13V(RS232), 0~3.3V(TTL) Ethernet: 100Mbps x 1
Indicators	Power Tx and Rx Status Indicator Tx and Rx Working Indicator Ethernet Working Indicator
Power Consumption	Tx: 17W(Max) Rx: 6W
Temperature	Working: -40 ~+ 85℃ Storage: -55 ~+85℃
Dimension	Tx/Rx: 73.8 x 54 x 31 mm
Weight	Tx/Rx: 160g
Metal Case Design	CNC Technology
	Double Aluminum Alloy Shell
	Conductive anodizing craft

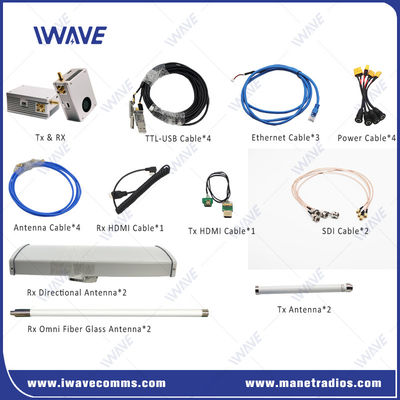

Package List

50KM HD SDI / HDMI Wireless Video Transmitter For Drone UAV Link 1
