| Brand Name: | IWAVE |
| Model Number: | FIM-2450 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |

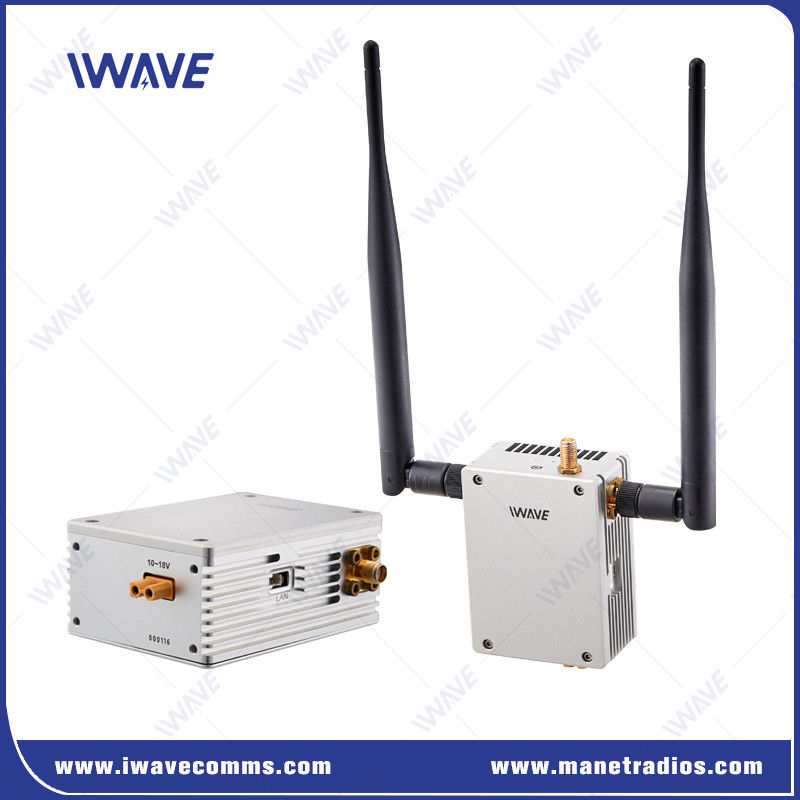

50km 1.4Ghz Gimbal Control SDI Video Transmitter Downlink System Air System
FIM-2450 SDI video downlik air system is miniaturised high-performance video and full duplex mavlink data links, designed to provide reliable wideband communications, under high-dynamics, for UAV, Drones, and other critical platforms.
The two full-duplex channels operate at frequency 1.4GHz, with data rates 3-6Mbps.
The video downlink has a rugged design for operating in harsh environments, featuring extended temperature range, conduction cooling, IP67 aluminium enclosure, and vibration/shock robustness. It enables on‑the‑move communications for any tactical system, commercial application, airborne platform, or ground vehicle.

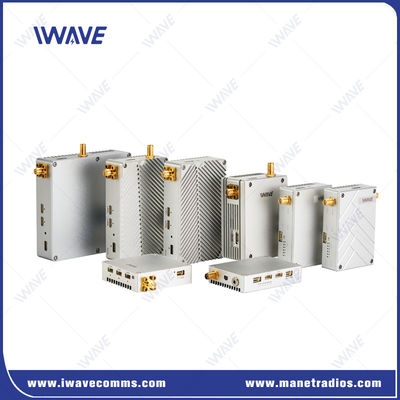

The series includes a rack-mount unit for control stations, with flexible interfaces, AC power supply, higher power amplifiers.
With the unique capabilities of the FIM-2450 transceiver, it is possible to setup a synchronised wireless network between distant users moving at high-speed, without the need for external timing sources (GPS not needed).
Main Features:
With the ability to use different cameras such as wide-angle & IR cameras.
No external encoders or decoders needed.
Transmission of live 1080p video.
For local recording onto a PC and also serve as a backup for real-time video.
SDI + IP+HDMI
Trusted source of security and encryption, validated by government organizations.
Up to 50km aircraft to ground controller with hd video and telemetry data
Small form factor, 130g weight |
|
Specification: 50KM TDD-COFDM Wireless SDI drone video transceiver
| Frequency | 1.4Ghz | 1430-1444Mhz |
| Bandwidth | 2/4/8MHz | |
| RF Power | 2W (Bi-Amp, 2W Peak Power of each power amplifier) | |
| Transmit Range | 50km | |
| Transmit Rate |
1.5/3/6Mbps (Video code stream and serial data) The best video stream: 2.5Mbps |
|
| Baud Rate | 115200(Adjustable) | |
| Rx Sensitivity | -100/-95/-90dbm | |
| Wireless Fault Tolerance Algorithm | Wireless baseband FEC forward error correction / video codec super error correction | |
| Video Latency |
Latency for encoding + transmission + decoding 720P/60 <50 ms 1080P/60 <80ms |
|
| Link Rebuild Time | <1s | |
| Modulation | Uplink QPSK/Downlink QPSK | |
| Video Compression Format | H.264 | |
| Video Color Space | 4:2:0 (Option 4:2:2) | |
| Encryption | AES128 | |
| Start Time | 25s | |
| Power | DC-12V (10～18V) | |
| Interface |
Interfaces on Tx and Rx are same
|
|
| Indicators |
|
|
| Power Consumption |
Tx: 17W(Max) Rx: 6W |
|
| Temperature |
Working: -40 ~+ 85℃ Storage: -55 ~+85℃ |
|
| Dimension | Tx/Rx: 73.8 x 54 x 31 mm | |
| Weight | Tx/Rx: 160g | |
| Metal Case Design | CNC Technology | |
| Double Aluminum Alloy Shell | ||
| Conductive anodizing craft | ||
