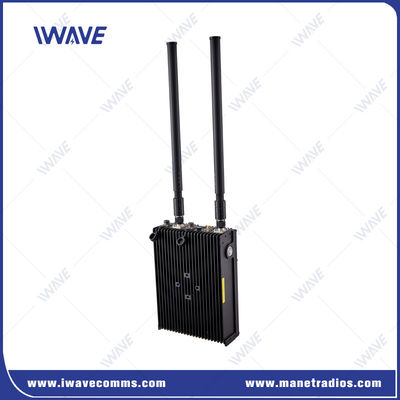

QPSK UHF IP MESH COFDM Video Transmitter HD 1080P Armored Vehicle

The Robust MESH high powered Unit comes in 10W and 20W solution. It is designed for outdoor deployment for fast moving vehicles.

FD-615VT H.264 Mini HDMI and IP COFDM wireless video transmitter, based on the 4th generation mobile communication COFDM multi-carrier modulation technology and efficient H.264 compression encoding method, is an integrated design that integrates digital modulation, digital audio Video compression in one, highly integrated high-definition mobile, non-line-of-sight digital image transmission equipment, small size and light weight. It can transmit full HD 1080P video and audio in blocky architectural environments, as well as high-quality full HD 1080P video and audio in high-speed mobile environments.

It is a powerful COFDM wireless video transmitter from IWAVE. The video transmitter adopts the latest COFDM modulation and its core bandwidth is narrow, which makes the FD-615VT 20W wireless transmitter perform well in high-speed mobile and NLOS (non-line of sight) transmission environments.

The FD-615VT video transmitter has 20W RF power, which can easily achieve 15~20km long-range wireless video in urban areas, and has a high-quality broadcast standard image of 1920*1080P.

The RF power, frequency, video input, housing, etc. of the FD-615VT cofdm video transmitter can be designed and customized according to the user's application and requirements.

Product Features Adopts FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping technology Self-managing and self-Healing Diverse network topologies Support high-definition mini HDMI 1080P, 720P video input, providing good compatibility Support military-grade non-standard 128-bit dynamic AES encryption Supports non-line-of-sight (NLOS) and high-speed mobile transmission Powered by high-performance, high-capacity lithium battery (battery replaceable) COFDM modulation Adaptive H.264/MPEG video compression mode Built-in HDMI/SDI/CVBS interface to meet different needs Suitable for long-distance video transmission in urban vehicles High-speed frequency hopping

Specification of Meshed Communications Network devices for Military Vehicles

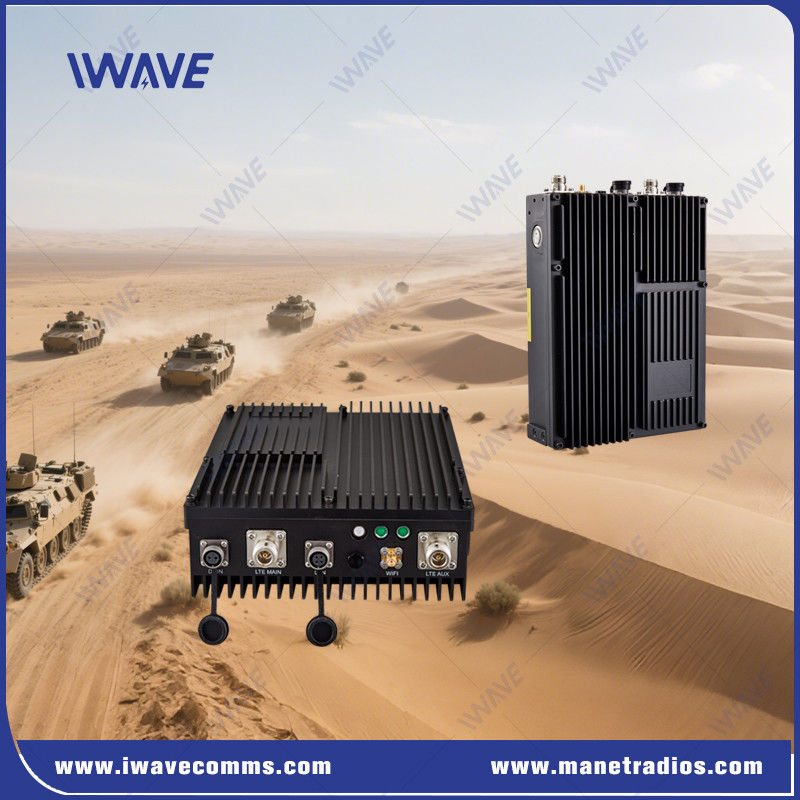

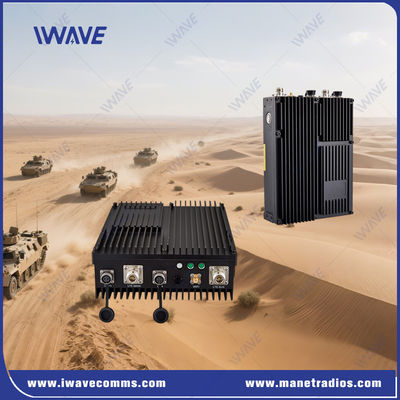

Application of Vehicle-Mounted MESH Radio

Vehicle-mounted MESH radios are advanced wireless communication systems designed for robust, flexible, and decentralized networking in dynamic environments. Their applications include:

1. Military & Defense

• Enables real-time tactical communication among convoys, patrol units, and command centers.
• Supports ad-hoc networking in remote or contested areas without infrastructure.

2. Public Safety & Emergency Response

• Facilitates coordination for police, firefighting, and disaster relief teams during missions.
• Self-healing networks ensure uninterrupted communication in urban or rugged terrains.

3. Industrial & Mining Operations

• Connects mobile crews and vehicles in large-scale sites (e.g., mining, oil fields) where traditional networks fail.
• Transmits sensor data, video feeds, and safety alerts.
