| Brand Name: | IWAVE |
| Model Number: | FD-61MN |
| MOQ: | 2Pcs |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
Low Latency Tri-band Digital IP MESH Module For NLOS Video Transmission
Introduction

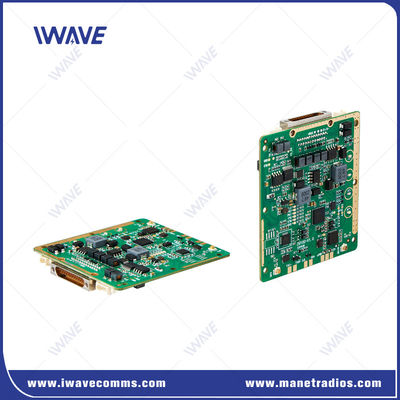

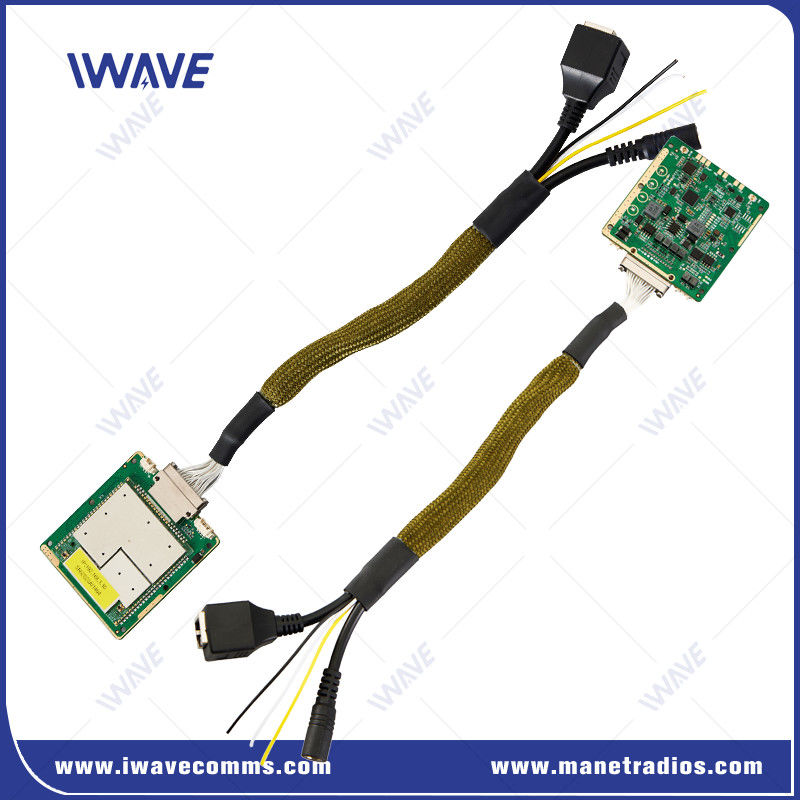

FD-61MN is a wireless transmission module designed by IWAVE, utilizing a mature System on Chip (SoC) chipset. It operates as an IP MESH radio, offering full duplex TCP/IP/UDP data communication alongside control TTL data communication.
Employing automatic frequency hopping technology (FHSS) and adaptive modulation, the FD-61MN is engineered to maintain robust communication in complex RF environments. Its compact design makes it ideal for integration into drones, UAVs, all-terrain vehicles, and other autonomous systems. The self-forming and self-healing mesh architecture, along with multiple Ethernet and UART ports, empowers the FD-61MN to transmit high-quality wireless video and telemetry for UAV swarms and robotic fleets.
Features
Excellent Low Latency performance:
Ensures efficient and timely data transmission.latency time End to end≤5ms-15ms
Stable Data Transmission:
Incorporates coding adaptive technology.
Automatically switches coding and modulation mechanisms based on signal quality, minimizing jitter in transmission rates.
30Mbps transmission data rate for downlink and uplinks
Serial Port Communication:
Supports obtaining serial port information via IP.
Widely applicable for controlling UGV fleets and UAV swarms.
Ethernet Ports:
Equipped with three Ethernet ports for connecting various terminals.
Power Input:
Wide voltage input range of DC 5-32V.
Management Software:
Supports a web-based user interface (WEBUI) for network management and parameter configuration.
API Integration:
Provides an API for third-party unmanned platform integration.
Application
Drone/robot collaborative networking
Stable/real-time/long-distance communication
MESH networking
HD video transmission for NLOS/LOS
Specification
| Technology | Adhoc based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES128 Optional Layer-2 |
| Data Rate | Max 30Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 16node |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 60*55*5.7mm |
| Weight | 26g |
| Tri-Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 800Mhz: 806Mhz-826Mhz | |
| 2.4Ghz: 2402-2481 MHz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 1xCOMUART |
| Power Input | 1*DC5-32V |
Powerful Serial Port Functions For Data Services
1.High-rate serial port data transmission: the baud rate is up to 460800
2.Multiple working modes of the serial port: TCP Server mode, TCP Client mode, UDP mode, UDP multicast mode, transparent transmission mode, etc.
3.MQTT, Modbus and other protocols. Supports serial port IoT networking mode, which can be used flexibly for networking. For example, users can accurately send control instructions to another node (drone, robot dog or other unmanned robotics) through a remote controller instead of using broadcast or multicast mode.
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode TCP client mode UDP mode UDP multicast MQTT Modbus |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
Video
Video
Video
Video
Video
Video
Video
|
