1.4Mhz 3Mhz 5Mhz 10MHz 20MHz Digital Data Link With Mesh Module

Name: 1.4Mhz 3Mhz 5Mhz 10MHz 20MHz Digital Data Link With Mesh Module
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FD-6100
Availability: InStock

Brand Name:	IWAVE
Model Number:	FD-6100
MOQ:	2
Price:	Negotiable
Delivery Time:	3-5working days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/MIC

Encryption:

128-bit AES

Network:

Mesh, Point-to-Multipoint, Point-to-Point

Data Rate:

30Mbps(Uplink+Downlink)

Range:

10km(Air To Ground)

Output Power:

25dBm

Latency:

15-25ms

Modulation:

QPSK, 16QAM, 64QAM

Bandwidth:

1.4Mhz/3Mhz/5Mhz/10MHz/20MHz

Packaging Details:

Standard carton box

Supply Ability:

1000Pcs/Month

Highlight:

20MHz Digital Data Link

10MHz Digital Data Link

5Mhz Digital Data Link

Product Description

Model: FD-6100

Robust and Secure Link in Multiple Frequency Bands with Mesh Module

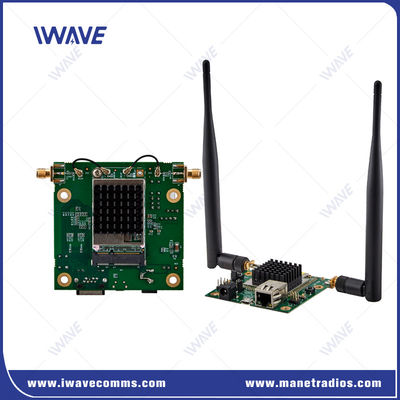

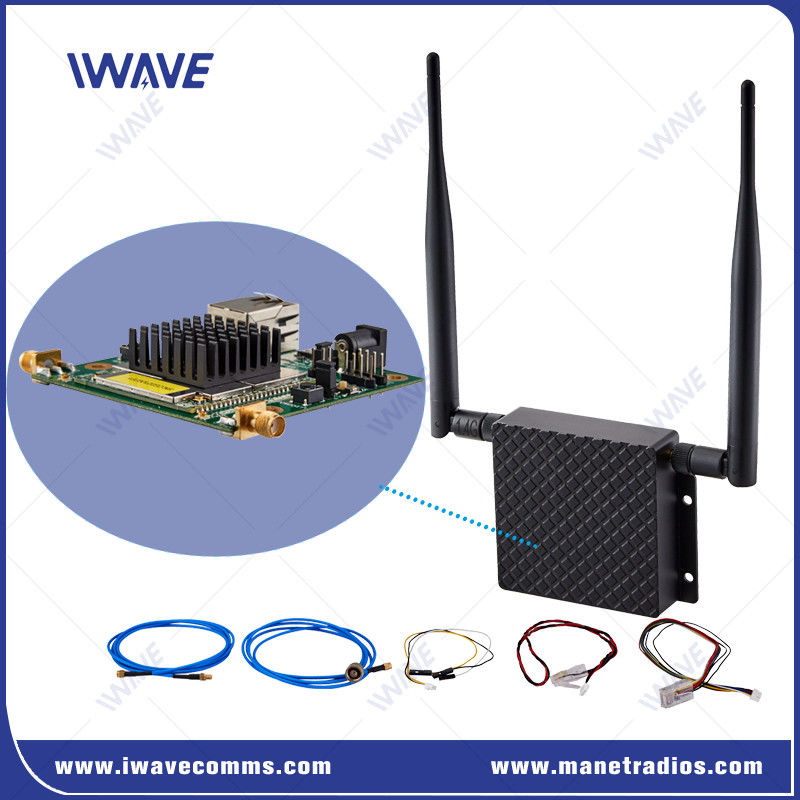

The FD-6100 is a compact, high-performance Tri-band OEM MIMO Digital Data Link designed for use in unmanned systems such as UAVs (Unmanned Aerial Vehicles) and UGVs (Unmanned Ground Vehicles). It provides robust and secure wireless communication over three selectable frequency bands: 800MHz, 1.4GHz, and 2.4GHz, making it suitable for challenging environments where reliable connectivity is crucial.

Key Features:

Fluid Self-Healing Mesh: Optimized for mobile applications, ensuring continuous connectivity even in dynamic environments.
Data Rate: 30Mbps (uplink + downlink).
Tri-band Frequency: 800MHz, 1.4GHz, and 2.4GHz, selectable via software.
OEM Format: Bareboard design for easy integration into various platforms.
Long-Range LOS (Line-of-Sight): Up to 10 km for UAV-to-ground communication.
Adjustable Output Power: RF power adjustable from -40 dBm to +25 dBm.
Mesh Network: Supports up to 8 nodes on a single frequency mesh network.
Flexible Communication: Simultaneous IP & Serial Data transmission.
Encryption: 128/256-bit AES encryption for secure communication.
Real-Time Configuration & Management: Via a web UI for easy setup and management.
Firmware Upgrades: Both local and remote firmware upgrades are supported.
Low Latency: Under 25ms for critical applications requiring real-time data transmission.
Temperature Range: Operates in extreme conditions from -40°C to +80°C.
Power Consumption: Very efficient, consuming only 5W of input power.
Lightweight: Weighs just 50g, making it ideal for lightweight platforms.
Flexible Deployment: Supports Mesh, Point-to-Multipoint, and Point-to-Point configurations.

Applications:

UAV and UGV Surveillance: Ideal for high-quality wireless video broadcasting and telemetry communications in various unmanned vehicle systems.
Flexible MANET Solution: Designed to provide adaptable, self-healing mesh networking in challenging, mobile environments.

This product is well-suited for critical applications where secure, long-range, and high-performance data communication is required, offering versatility across a range of industries like surveillance, robotics, and remote sensing.

Specification

GENERAL
TECHNOLOGY	MESH base on TD-LTE Wireless technology standard
ENCRYPTION	ZUC/SNOW3G/AES(128) OptionalLayer-2
DATA RATE	30Mbps(Uplink and Downlink)
RANGE	10km(Air to ground)500m-3km(NLOS Ground to ground)
CAPACITY	8 nodes
POWER	23dBm±2 (2w or 10w on request)
LATENCY	One Hop Transmission≤30ms
MODULATION	QPSK, 16QAM, 64QAM
ANTI-JAM	Automatically Cross-Band frequency hopping
BANDWIDTH	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
POWER CONSUMPTION	5Watts
POWER INPUT	DC12V

SENSITIVITY
2.4GHZ	20MHZ	-99dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
1.4GHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
800MHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm

FREQUENCY BAND
2.4Ghz	2401.5-2481.5 MHz
1.4Ghz	1427.9-1447.9MHz
800Mhz	806-826 MHz

COMUART
Electrical Level	2.85V voltage domain and compatible with 3V/3.3V level
Control Data	TTL mode
Baud rate	115200bps
Transmission Mode	Pass-through mode
Priority level	Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority
Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need todefine the format yourself

MECHANICAL
Temperature	-40℃~+80℃
Weight	50grams
Dimension	7.810.82cm
Stability	MTBF≥10000hr

INTERFACES
RF	2 x SMA
ETHERNET	1xEthernet
COMUART	1x COMUART
POWER	DC INPUT
INDICATOR	Tri-COLOR LED
