| Brand Name: | IWAVE |
| Model Number: | FD-610X |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T,L/C,D/P |
Secure Wireless Military Sdr Radio UAV/Drone Data Links for BVLOS Communications
Introduction

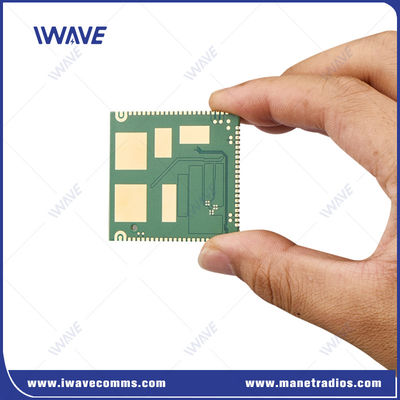

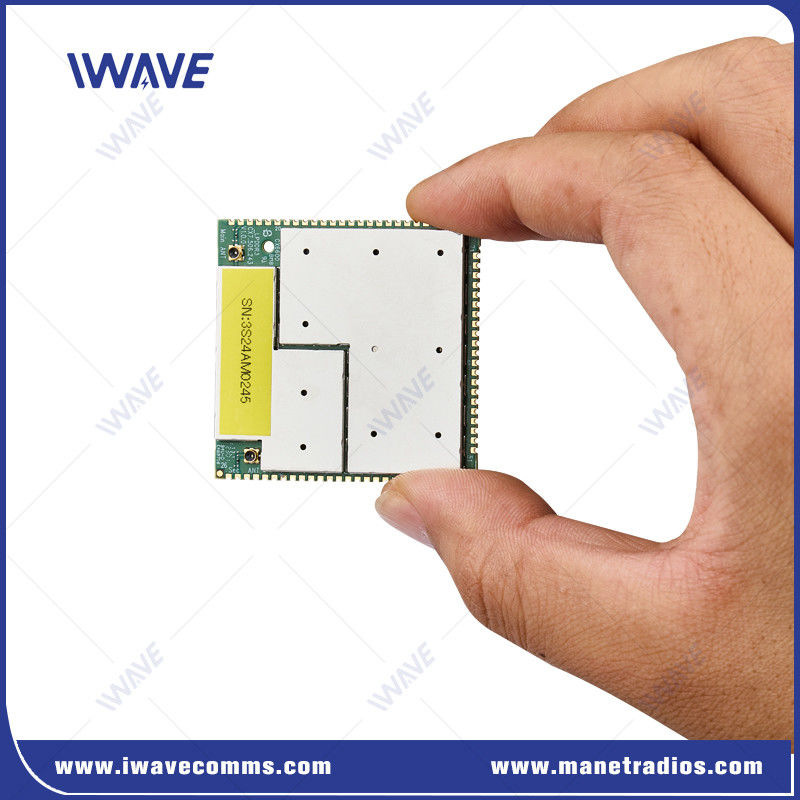

The FD-610X is a compact, lightweight tri-band wireless Software Defined Radios that is designed for integration into small and medium UAVs.
Featuring RF connectors for external antennas as well as Ethernet and serial interfaces, the ultra-low weight radio transceiver with advanced electronic beam-forming provides end-to-end IP connectivity for efficient integration, interoperability and seamless data exchange. The unit provides AES-128 hardware encryption.
FD-610X is available in convenient form factors – an OEM module for easy integration into any platform, and a standalone connectivity solution.
Radios provide resilient connectivity for drones and robotic platforms that encounter significant environmental or situational RF interference.
Benefits of Military Sdr Radio
Frequency flexibility: FD-610X SDR Radios support 800Mhz, 1.4Ghz and 2.4 GHz; a total of 120 MHz spectrum, with FHSS to avoid interference.
Advanced interference-avoidance/Anti-jamming: adopts OFDM and MIMO technology and adaptive modulation for optimal performance in noisy and adverse environments
Channel optionality: Ability to choose 1.4, 3, 5, 10 or 20MHz channel BW to match performance requirements; Smaller channels provide lower throughput, but longer range
Long range: Field-proven up to 10km
Low-latency: The Ultra-Reliable Low Latency Channel (URLLC) segregates video data from C&C signal, ensuring low latency, unbroken video feed and seamless robotic operation
Fast roaming: Collision-avoidance for fast-moving ground robotics, like AMRs or quadrupeds
Application
|
|
Specification
|
Transmitting |
Master control module image acquisition device for data acquisition and encoding |
Camera |
|
The main control module send the encoded data to FD-610X through the USB or HSIC interface |
Physical interface USB/HISC, logically virtual into a network card | |
|
FD-610X sends the encoded image data to the receiving end through the air interface. |
||
| Receiving | The FD-610X receiving end gets the encoded image data and then transparently transmits it to the main control module. | |
| FD-610X sends data to the main control module via USB or HSIC interface. | Physical interface USB/HISC, logically virtual into a network card | |
|
After the main control module receives data, it performs image decoding and display. |
||
| PCB Size | 43.40*45.00*3.00mm | |
| RF | Frequency | 2.4Ghz: 2401.5-2481.5 MHz |
| 1.4Ghz: 1427.9-1467.9MHz | ||
|
800Mhz: 806-826 MHz |
||
|
RF Power |
25dBm | |
|
Sensitivity (Access) |
2.4Ghz(24415 Channel) 20Mhz:-99dBm 10Mhz:-103dBm 5Mhz:-104dBm 3Mhz:-106dB |
Access |
|
1.4Ghz(14379 Channel) 10MHz:-103dBm 5Mhz:-104dBm 3Mhz:-106dBm |
Access |
|
|
800Mhz(8160 Channel) 10MHz:-103dBm 5Mhz:-106dBm 3Mhz:-108dBm |
Access |
|
Interface |
UAR |
1 |
|
COM-UART |
1 |
|
|
HSIC |
USB 2.0 High Speed |
|
|
US |
USB 2.0 High Speed |
|
|
I2C |
1 | |
|
GPIO |
6 |
|
|
JTAG |
1 | |
|
Antenna |
2 |
Video
Video
|
|
