30Mbps IP MESH Module Wireless NLOS Video And TTL Data Radios

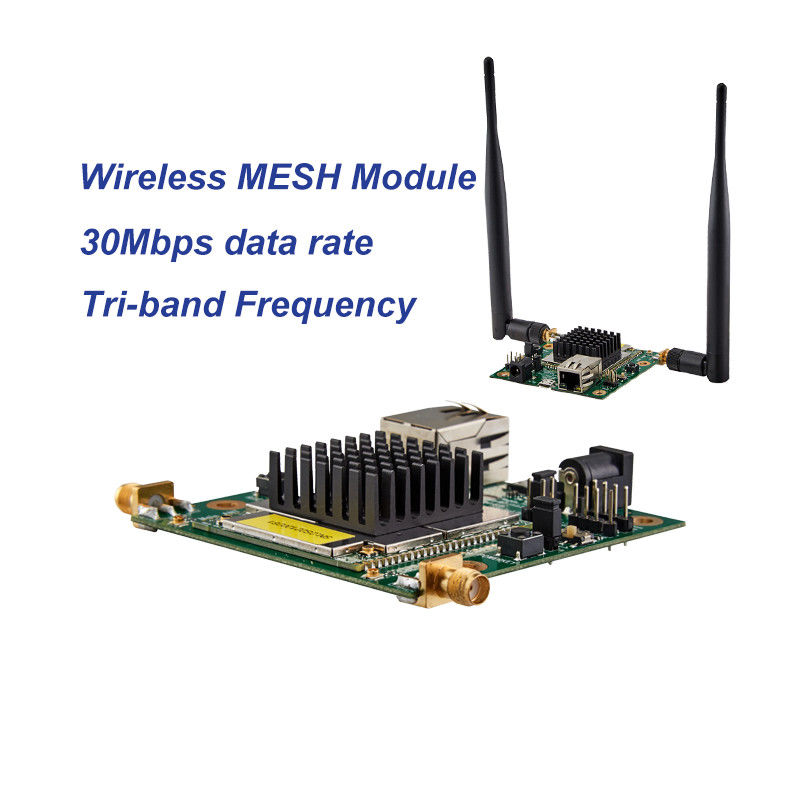

The FD-6100 is a compact and versatile digital data link designed for UAV (Unmanned Aerial Vehicle) and UGV (Unmanned Ground Vehicle) applications.

Here’s an overview of its features and specifications:

Key Features

• Tri-band Frequency: Operates on 800 MHz, 1.4 GHz, and 2.4 GHz, selectable via software for optimal performance in various environments.

• Data Rates: Supports data rates of up to 30 Mbps for both uplink and downlink, ensuring high-quality video and telemetry communications.

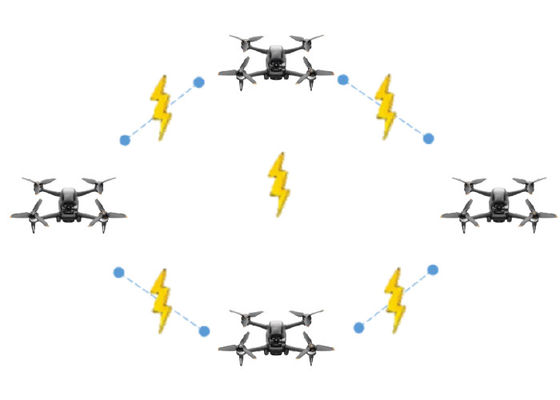

• Fluid Self-Healing Mesh: Optimized for mobile applications, providing a robust and flexible mesh networking solution.

• Long Range LOS: Achieves a line-of-sight range of 10 km from air to ground, making it suitable for extensive surveillance operations.

• Adjustable Output Power: Features an adjustable total output power of 25 dBm with a power range from -40 dBm to +25 dBm.

• Node Capacity: Supports up to 8 nodes on a single frequency mesh network, enabling extensive network configurations.

• Multiple Communication Modes: Capable of operating in mesh, point-to-multipoint, and point-to-point modes, providing flexibility for different applications.

• Simultaneous IP & Serial Data: Allows for the connection of any general IP device, ensuring versatile integration options.

• Low Latency: Maintains latency under 25 ms, making it suitable for critical real-time applications.

• Robust RF Performance: Utilizes FHSS (Frequency Hopping Spread Spectrum) technology in conjunction with TD-LTE standards for enhanced reliability.

• Encryption: Supports 128AES encryption for secure data transmission.

• Web UI Management: Configuration, management, and real-time topology can be handled via a user-friendly web interface.

• Firmware Upgrade: Allows for local and remote firmware upgrades to ensure the device stays up-to-date.

• Operating Temperature: Designed to function in a wide temperature range from -40℃ to +80℃

• Compact and Lightweight: Weighing only 50 g and consuming just 5W of input power, it is ideal for integration into compact platforms.

Conclusion

The FD-6100 is an advanced solution for high-quality wireless communication in challenging environments, particularly for UAV and UGV operations.

Its combination of robust features, flexibility, and low power consumption makes it a leading choice for modern surveillance and telemetry needs.

If you have any questions or need further information, feel free to ask!

Application

• Ideal for use for wide area coverage & multi-hop, mobile applications such as roboticss

• Tactical communications

• Unmanned land vehicles wireless video transmission
