Dual Band Video and Telemetry Data for Unmanned System

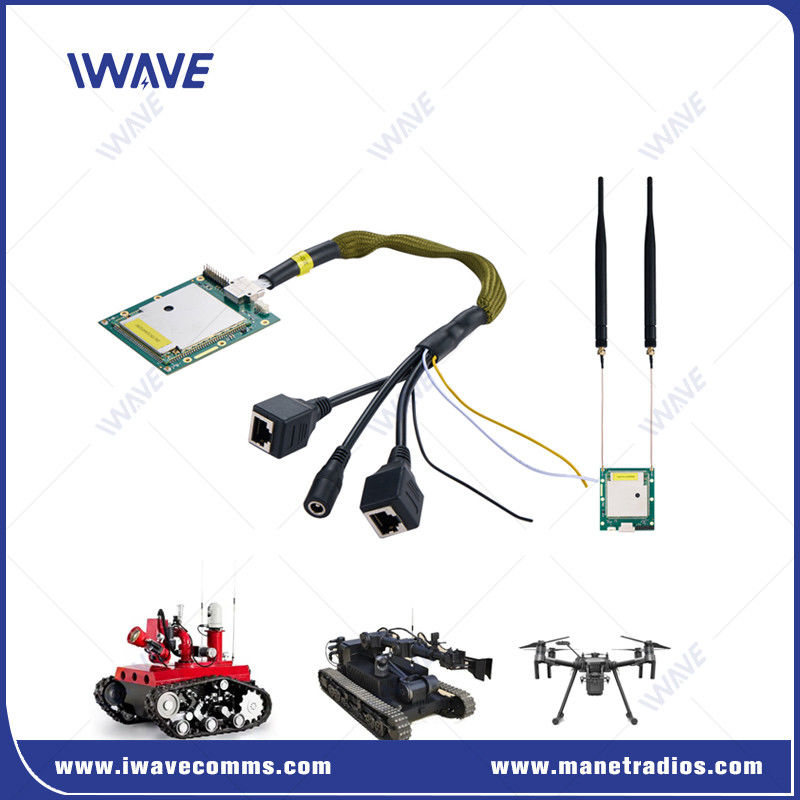

FDM-6800 is a 2*2 200MW MIMO IP PtMP device in a mini size. It is well-suited for long-rangeand high-volume data flow airborne missions. Larger power configurations, such as a 10W MIMO is also available for building a ultra long range communication.

The system uses FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping star topology, supporting data and video in point-to-point, point-to-multipoint, or multipoint-to-multipoint configurations.

FDM-6800 adopts star networking working mode to provide IP transparent transmission channels for upper layer applications such as video, voice, and data.

FDM-6800 is implemented based on software defined radio architecture, and adopts self-developed waveform, efficient channel codecs and star networking protocols and other technologies to combat complex channel environments. It realizes wireless broadband service transmission between mobile points and fixed points such as individual soldiers, vehicles and drones in complex scenarios, with small size and low power consumption.

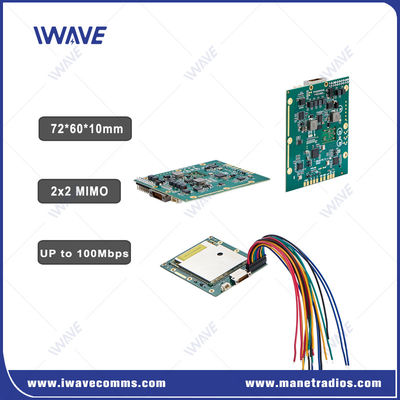

• High-throughput, long-range 2*2 MIMO model meets the demands of advanced robotics platforms like Drones and UGVs.
• High Throughput: up to 100 Mbps
• Long Range: 20kilometers air to ground and 1-3km nlos
• Low-SWaP for easy integration
• Multi-band and available Sense for advanced inteference-avoidance
• Frequency hop from 600Mhz to 1.4Ghz for anti-jamming
• Small dimension, light weight, easy to install
• Highly integrated modular combination design
• RJ45/TTL/RS232/RS485/RS422/SBUS (Customizable)
• Software defined radio,SDR, easy webpage operation
• Network management software to real monitor the SNR, RSSI, Topology and distance between nodes.
• API document is available for integrated into the third party platform.
