| Brand Name: | IWAVE |
| Model Number: | FDM-6800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |

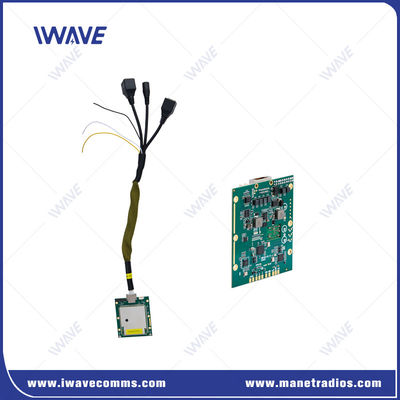

mimo mavlink telemetry digital radio board for Unmanned System
Introduction
Low latency, high throughtout put 100Mbps. FDM-6800 is designed for reliable, long-range robotic applications with real-time, immediate information from mobile nodes. One master node can support 64 slave node.In a point to multipoint configuration, FDM-6800 provides the ability to stream high quality multiple video streaming to one master node one ground. It is widely applied to connect a drone swarm or UGV fleet with one monitor and control center on ground.
Application
Connect multiple UAV, UGVs, sensors,personnel and manned/unmanned platforms through one massively scalable star network.
FDM-6800 is a OEM PCB solutions for integration into third-party equipment for scalable deployments. It supports Commercial and Government projects pioneering innovative robotic use cases.
Features
Up to 25dbm output power (2W, 10W on request)
NLOS 1-3km 8K video and telemetry control transmitting
Up 100 Mbps Data Throughput uplink+downlink
IWAVE proprietary waveform: 64 node scalability
Single/Dual Band 600Mhz+1.4Ghz Frequency Options
Hop frequency within band and cross bands to anti-jam
I/O Interfaces: Ethernet, USB, RS232
Advanced Encryption: AES128, ZUC/SNOW3G
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Upto 100Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 64node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |

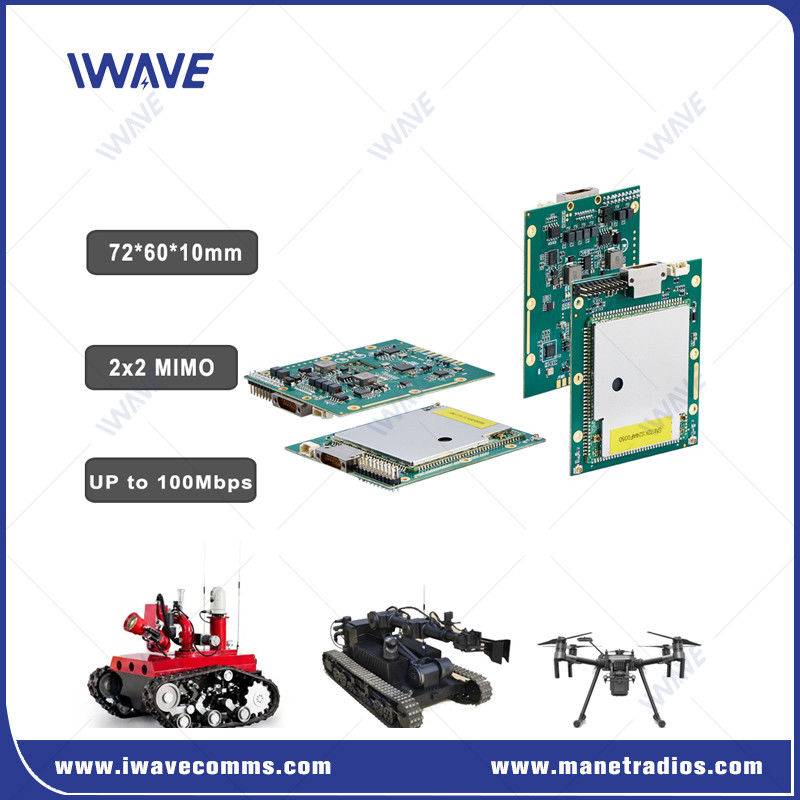

| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
