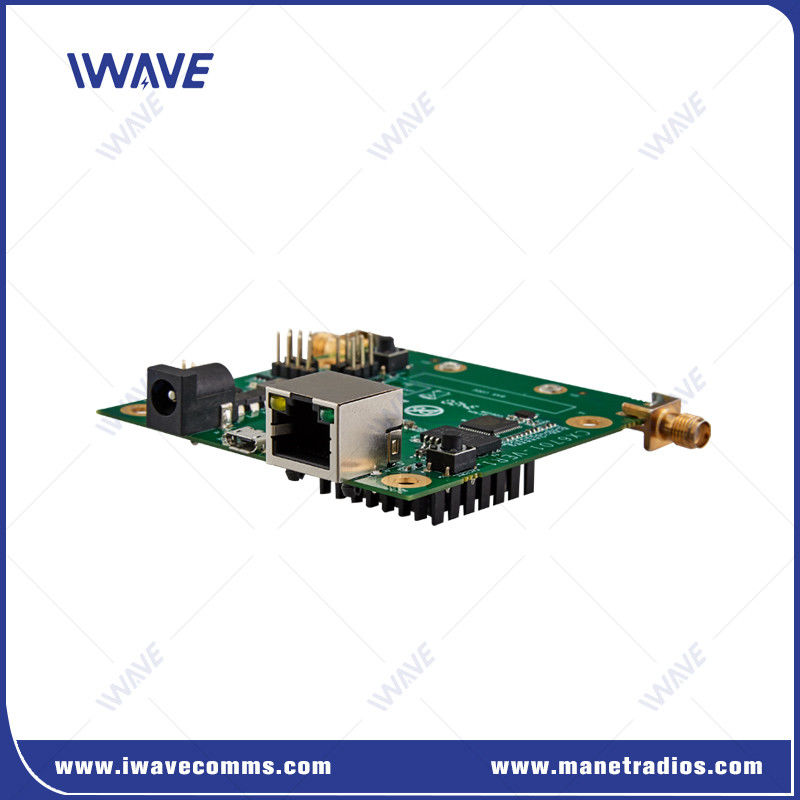

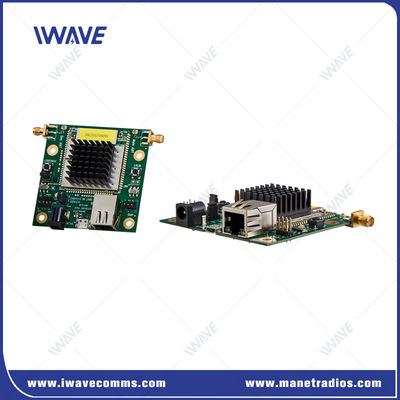

Wireless COFDM Digital Video Transmitter for Mobile UAVs and Robotics in NLOS

FDM-6600 wireless COFDM Digital Video Transmitter offers Video, IP and Data for all your unmanned communications needs.

Strong NLOS ability ground to ground and reach 15km air to ground allows you get a stable and smooth video streaming without stuck. For NLOS communication, it has been applied underground, dense forest, indoor, urban environment with buildings, tunnels and mountains. FDM-6600 only weighs 50g and is the ideal for size and weight critical UxV applications.

• Strong NLOS Ability

  FDM-6600 is special designed based on TD-LTE technology standard with advanced algorithm to achieve a high sensitivity, which enable a robust wireless link when the signal is weak. So when working in nlos environment, the wireless link is also stable and strong.

• Robust Long Range Communication

  Up to 20km(air to ground) clear and stable radio signal and 1km to 3km NLOS(ground to ground) with smooth and full hd video streaming.

• High Throughput

  Upto 30Mbps(uplink and downlink)

• Interference Avoidance

  Tri-band frequency 800Mhz, 1.4Ghz and 2.4Ghz for cross-band hopping to avoid interference. For example, if 2.4Ghz is interferenced, it can hop to 1.4Ghz to ensure the good quality connection.

• Dynamic Topology

  Scalable point to Multipoint networks. One master node supports 8 slaver node. Configurable on web UI and the real time topology will be displayed monitoring all the nodes connection.

• Encryption

  Advanced encryption technology AES128 is built-in to prevent your data link from a unauthorized access.

• COMPACT & LIGHTWEIGHT

  Only weights 50g and is ideal for UAS/UGV/UMV and other unmanned platforms with strict size, weight, and power (SWaP) constraints.

FDM-6600 is an advanced SoftwareDefined Radio(SDR) Wireless Video and Data Links designed with light weight, small size and low power. The tiny module support video and full duplex data communication (e.g. Telemetry) in a single high-speed broadband RF channel, which make it perfect for UAV, autonomous vehicles, and mobile robotics for various industries.
