UAV Swarm Wireless Drone Video Transmitter 10km Air To Ground Link With FHSS

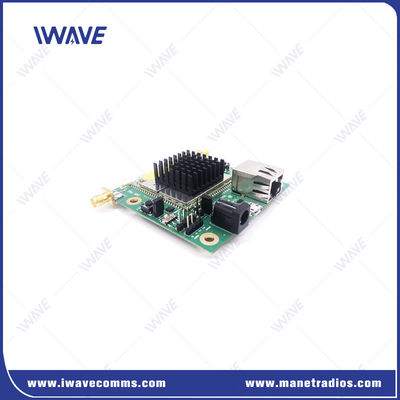

Name: UAV Swarm Wireless Drone Video Transmitter 10km Air To Ground Link With FHSS
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FD-6100
Availability: InStock

Brand Name:	IWAVE
Model Number:	FD-6100
MOQ:	2units
Price:	Negotiable
Delivery Time:	5-8work days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, MIC

Tri-band Frequency:

800Mhz/1.4Ghz/2.4Ghz

Technology:

MESH

Data Rate:

30Mbps

Node:

16node

Anti-jam:

FHSS

Baud Rate:

115200

Ethernet:

1xRJ45

Control Data:

TTL/RS232

Packaging Details:

Standard Carton Box

Supply Ability:

500000/month

Highlight:

Swarm Wireless Drone Video Transmitter

Wireless Drone Video Transmitter 10km

FHSS Drone Wireless Video Transmitter

Product Description

UAV Swarm Wireless Drone Video Transmitter 10km Air To Ground Link With FHSS

Introduction

Software-Defined Radio, Scalable, self-healing radio For UAV Swarm

Our wireless mesh network solutions are ideal for the challenging requirements of UAVs, providing a variety of benefits for OEMs and system integrators of 4K video streaming drones.

The FD-6100 is the first miniature, triple frequency, software selectable 800 MHz & 1.4 GHz & 2.4Ghz digital data link available on the market. Users can select the desired frequency on IWAVE management software.

The FD-6100 provides the flexibility and bandwidth required for todays for complex data applications. The FD-6100 provides fast and secure, simultaneous Ethernet and Serial based data communication.

Features

Software Selectable 800 MHz &1.4Ghz & 2.4 GHz
Up to 30 Mbps Iperf Throughput!
Adjustable Output Power (up to 25dbm)
Extremely Small Footprint
Very Lightweight
Point-to-Point, Point-to-Multipoint, MESH
Low Power Consumption
Simultaneous IP & Serial Data
Serial Communication Port
Dual Ethernet Ports (LAN/WAN)

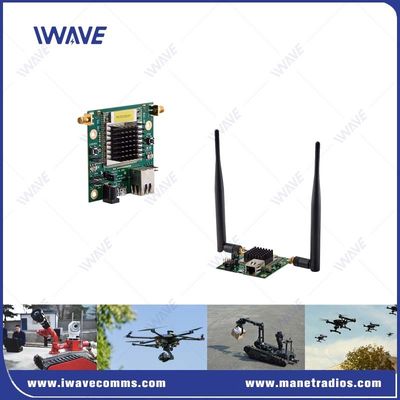

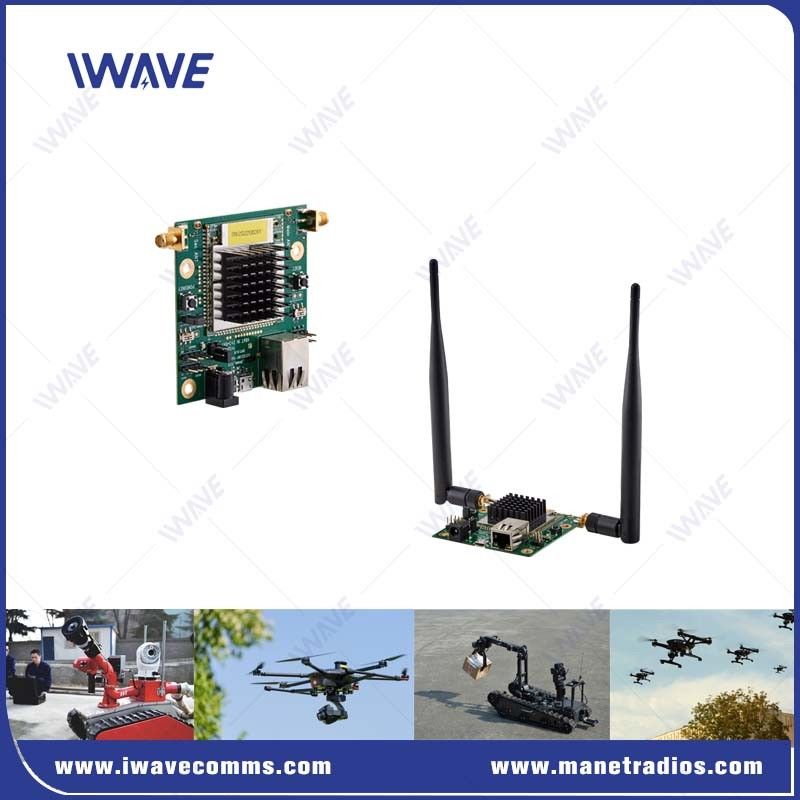

Application

FD-6100 enables self-forming and self-healing mesh networks. Mesh networks improve robustness, extend range and simplify collaborative communication. It is ideal for size and weight critical UxV applications, offering the SWaP of a bare-board solution for platform and system integration.

●Ideal for use for wide area coverage & multi-hop, mobile applications such as robotics

●Tactical communications

●Unmanned land vehicles wireless video transmission

Specification

Technology	Adhoc based on TD-LTE Technology Standard
Encryption	ZUC/SNOW3G/AES128 Optional Layer-2
Data Rate	Max 30Mbps(Uplink and Downlink)
Communication Range	Air to ground 10km NLOS Ground to ground 1-3km
Node	16node
RF Power	23dBm±2 (2w, 5w or 10w on request)
Latency	End to end≤5ms-15ms
Modulation	Adaptive QPSK, 16QAM, 64QAM
Anti-Jamming	FHSS(Frequency Hop Spread Spectrum)
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz
Power Consumption	5watts
Power Input	DC5-32V
Dimension	7.810.82cm
Weight	50g
Tri-Band Frequency	1.4G: 1420Mhz-1530MHz
	800Mhz: 806Mhz-826Mhz
	2.4Ghz: 2402-2481 MHz

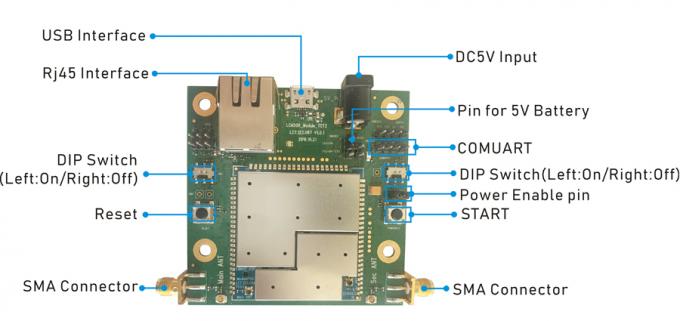

RF	2 x IPX
LAN Port	3x Ethernet Port
Comuart	1xCOMUART
Power Input	1*DC5-32V
