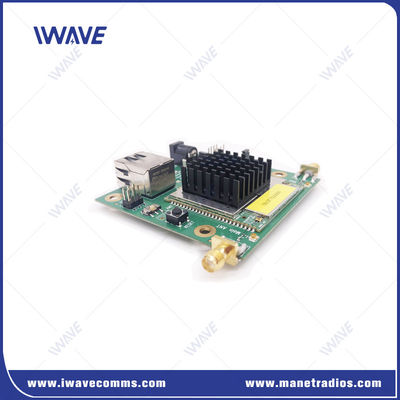

Mimo Digital Data Link For Mobile Uavs And Robotics Transmitting Video In Nlos
Introduction
FDM-6600 adopts FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping technology as its core, it can provide a seamless and highly secure private network even in non-line-of-sight (NLOS) and fast moving conditions. This network can be configured in chain, star, or random topologies.
With its secure data streaming capabilities, the rugged wireless IP link helps users control military grade unmanned vehicles more quickly, safely, and systematically .
Features
Adopt FPGA architecture, multi-waveform, ultra-wideband, high-speed frequency hopping and other technologies
Do not rely on base stations. Capable of forming a decentralized wireless broadband network efficiently and quickly
Provide IP interface to realize interconnection and interworking with other IP devices
Anti interference COFDM / broadband carrier frequency hopping can improve link quality in complex RF environment
Excellent multipath and NLOS performance
Adaptive radio modulation from QPSK to 64QAM is continuously optimized per packet to optimize link performance in dynamic environments
Software defines channel sizes for efficient reuse of spectrum
The software defines the operating frequency of the global application
Convolution coding, forward error correction (FEC), ACK retransmission, maximum ratio merge, spatial multiplexing, and space-time block coding are
used for robust data transmission over noise spectrum
Application
| FDM-6600 is an advanced MIMO Advanced Wireless Video and Data Links designed with light weight, small size and low power. The tiny module support video and full duplex data communication (e.g. Telemetry) in a single high-speed broadband RF channel, which make it perfect for UAV, autonomous vehicles, and mobile robotics for various industries. | |
Specification
| GENERAL | ||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km-15km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | Star Topology, Point to 17-Ppint | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC5V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1467.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-6600 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself | ||
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
