UGV/UAV NLOS Ethernet COFDM Transmitting System

Tri-Band Frequency UGV/UAV NLOS Ethernet COFDM Transmitting System

Introduction

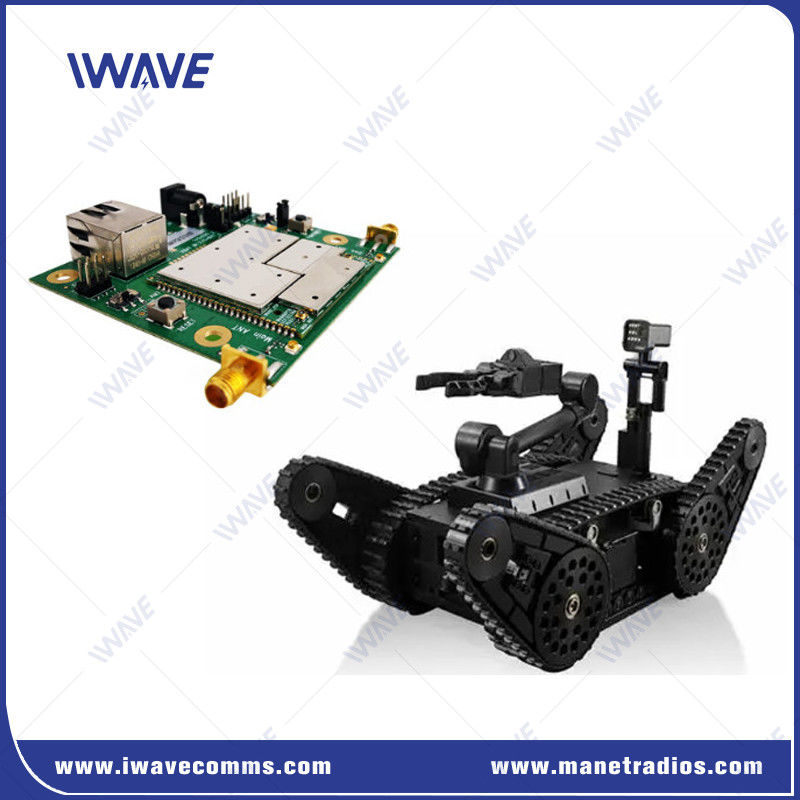

The FDM-6600 is an advanced and scalable Mobile Ad Hoc Networking (MANET) system, now available in a SWaP-optimized embedded module form factor. This system supports both point-to-point and point-to-multipoint NLOS (Non-Line of Sight) COFDM Ethernet transmission, making it ideal for high-definition video and serial data transmission at 115200 bps. Its compact design, low power consumption, and long-range capabilities make it suitable for various applications, including unmanned aerial vehicles (UAVs), unmanned ground vehicles (UGVs), criminal investigations, and covert photography.

Main Features

• Real-Time HD Video Transmission: Supports seamless video streaming.
• Peak Throughput: Achieves data rates of up to 30 Mbps.
• Transmission Distance: Line of sight capabilities extend beyond 20 km.
• Compact Design: Small size and low power consumption enhance portability.
• Modular Integration: Easily integrates into existing systems.
• RS232 Serial Data Transmission: Facilitates additional data communication.

Wireless Technology for Drones & Unmanned Systems

Wireless Radio technology is particularly effective for unmanned vehicles and systems, providing truly wireless connectivity. Key benefits include:

• Star Network Communication: Each node can communicate with smart node, improving network resilience and efficiency.
• Robust Data Routing: Efficiently routes data without relying on a central master node, eliminating potential points of failure.

The FDM-6600 represents a significant advancement in wireless communication technology for critical applications in unmanned systems.

Technical Features

Transmission Features

Interface
