Drone Video Transmitter

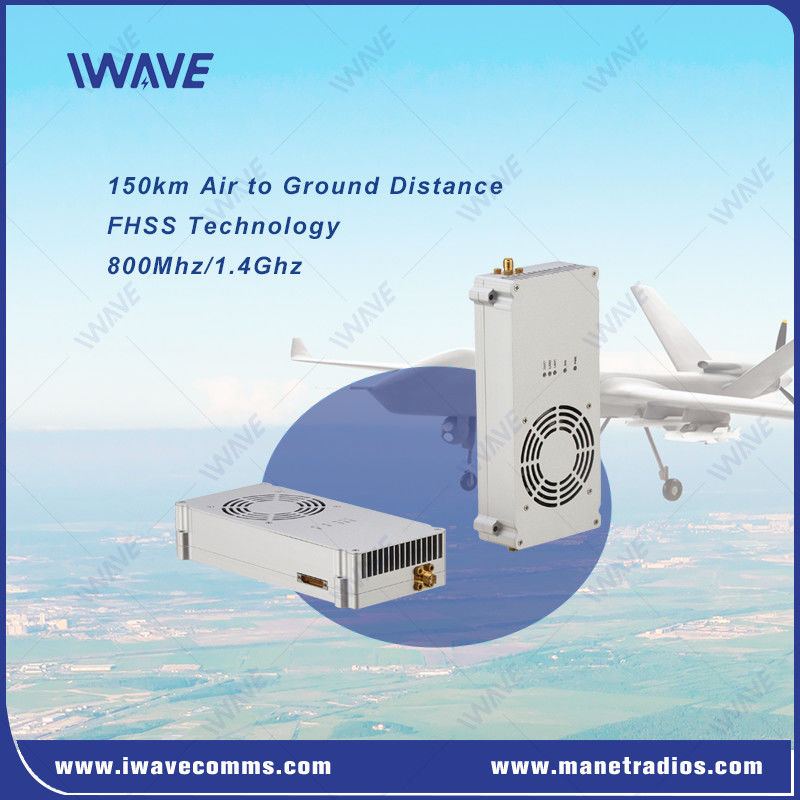

FHSS Anti Interference Drone Video Transmitter

Name: FHSS Anti Interference Drone Video Transmitter
Brand: IWAVE COMMUNICATIONS CO.,LTD
SKU: FDM-615PTM
Availability: InStock

Brand Name:	IWAVE
Model Number:	FDM-615PTM
MOQ:	2units
Price:	Negotiable
Delivery Time:	5-8work days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, MIC

Name:

FHSS Anti-interference Wireless HD Video Transmitter For Drones With Long Range

Range:

100-150km

Network:

Point To Multiple Point

Node:

One Master Node Supports 32 Slave Node

Delay:

15-25ms

Data Rate:

30Mbps

Weight:

280g

Size:

150*68*30mm

Packaging Details:

Standard Carton Box

Supply Ability:

500000/month

Highlight:

Anti Interference Drone Video Transmitter

FHSS Drone Video Transmitter

30Mbps Long Range Drone Video Transmitter

Product Description

FHSS Anti-interference Wireless HD Video Transmitter For Drones With Long Range

FHSS Anti Interference Drone Video Transmitter 30Mbps Long Range Drone Video Transmitter

Description

The FDM-615PTM is a versatile, high-performance wireless communication unit, offering reliable video and data transmission even in the most demanding environments. With features like FHSS, AES encryption, and low latency, it’s an ideal choice for UAVs and autonomous platforms needing long-range, secure communication.

New Dynamic Frequency Selection, automatic power control, Strong NLOS ability, Frequency Hopping & Ultra Wide L-band Range 1420-1530Mhz Frequency delivers robust interference and antijam immunity!

Key Features

Multiple bandwidth option 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz
Transmission Power: 10 watts
Frequency Range: 1420-1530 MHz (Ultra Wide L-band)
Transmission Rate: 8-12 Mbps (at 150 km)
Latency: < 80ms
Encryption: AES128
Power Consumption: Low power for extended operation
Antenna Type: 2dBi fiber glass
Interface: Ethernet and serial data support
Weight: 280g
Dimensions: Compact, suitable for small platforms
Air to ground 100km-150km
Automatically power control according to the real time signal quality
3* Ethernet Port support TCPIP and UDP and other IP based devices to connect with

Application

Maritime Operations: Video and telemetry for maritime surveillance and monitoring.
Surveillance: Full HD video for security and surveillance in remote areas.
Unmanned Platforms: Integration into unmanned ground, air, or sea platforms.

Specification

GENERAL
Technology	Wireless based on TD-LTE Technology Standards
Encryption	ZUC/SNOW3G/AES(128) OptionalLayer-2
Data Rate	30Mbps(Uplink and Downlink)
Range	100km-150km(Air to ground)
Capacity	32Nodes
NLOS Range	5-10km nlos ground to ground
RF Power	10Watts
Latency	End to End: 60ms-80ms
Modulation	QPSK, 16QAM, 64QAM
Anti-jamming	Automatically frequency hopping
Bandwidth	1.4Mhz/3Mhz/5Mhz/10MHz/20MHz

SENSITIVITY
2.4GHZ	20MHZ	-99dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
1.4GHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm
800MHZ	20MHZ	-100dBm
	10MHZ	-103dBm
	5MHZ	-104dBm
	3MHZ	-106dBm

FREQUENCY BAND
2.4Ghz	2401.5-2481.5 MHz
1.4Ghz	1427.9-1447.9MHz
800Mhz	806-826 MHz

POWER
Power Input	DC 24V+-10%
Power Consumption	30watts

COMUART
Electrical Level	2.85V voltage domain and compatible with 3V/3.3V level
Control Data	TTL mode
Baud rate	115200bps
Transmission Mode	Pass-through mode
Priority level	l Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority
Note:l The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-615PTM node can receive serial data.l If you want to distinguish between sending, receiving and control, you need to define the format yourself

INTERFACES
RF	2 x SMA
Ethernet	1xJ30
COMUART	1xJ30
Power	1xJ30
Debug	1xJ30

Q&A

Q1: What is the maximum range of the FDM-615PTM for video and data transmission?

A1:The FDM-615PTM offers stable communication for up to 150 km in clear line-of-sight conditions using a 2dBi fiber glass antenna. For ground-to-ground communication, it supports a long-range reliable connection even in non-line-of-sight (NLOS) environments, especially with its FHSS (Frequency Hopping Spread Spectrum) capabilities.

Q2: What type of video quality can be expected from the FDM-615PTM at long distances?

A2:At a distance of 150 km, the FDM-615PTM provides a real-time data rate of 8-12 Mbps, enabling full HD 1080P60 video streaming. This ensures high-quality video for surveillance, monitoring, and mission-critical operations.
