Ethernet And Full Duplex TTL Serial Wireless Data Link For Unmanned System

Ethernet And Full Duplex TTL Serial Wireless Data Link For Unmanned System

Descryption

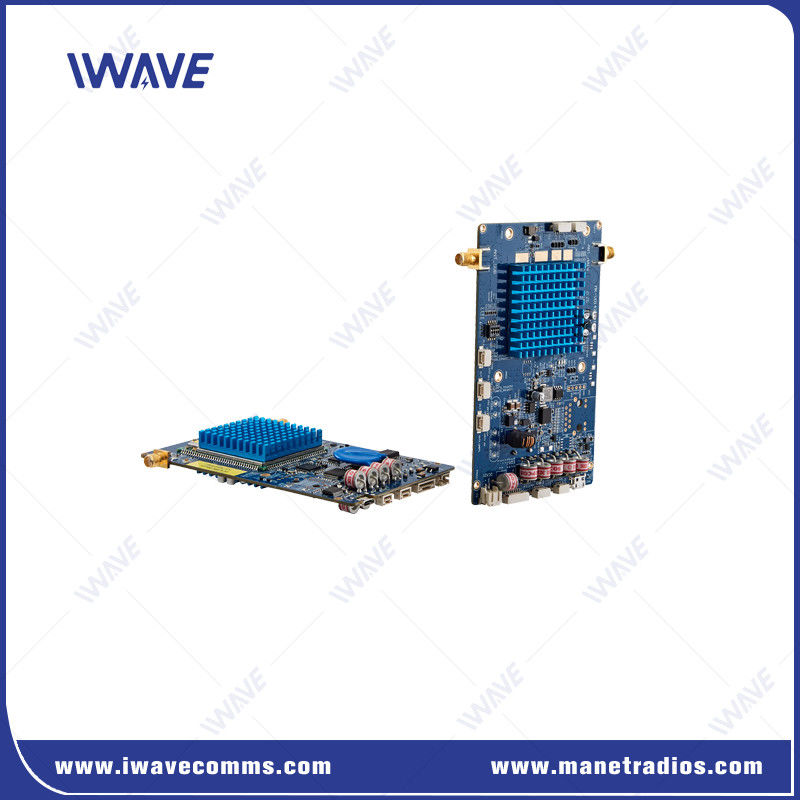

FDM-6680 is a wireless transmission product designed by IWAVE based on mature SOC chipset, which supports point to point and point to multi-point. 1 maseter node supports up to 64 sub-nodes to shares 120Mbps bandwidth for video and data transmitting.
Key Features:

• FDM-6680 is designed based on TD-LTE wireless communication standard, OFDM and MIMO technologies. It doesn't rely on any carrier's base station.

• Supports Ethernet and full duplex TTL data transmission. And the control data transmission is higher priority than network signal.

• It adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.

Applications:

The FDM-6680 is well-suited for various applications, including:

• Surveillance Systems: For real-time video monitoring and data transmission.

• Industrial Automation: Enabling communication in smart manufacturing environments.

• Broadcasting: Facilitating reliable live video feeds.

• Remote Sensing: Supporting data collection from remote locations.

If you have any further questions or need more specific information, feel free to ask!

Interface


P1: USB Interface, P2: Ethernet Port, P3: Ethernet Port & POE, P4: Power Input

P5: DBB_COMUAR, P6: UART0, P7: RF Port, P8: RF Port, P9: DBB_RFGPO, P10: DBB_RFGPO
