120Mbps Wireless Video Communication Data Link Unmanned Data Communication Link

Model: FDM-6680

120Mbps Wireless Video Communication Data Link For Unmanned System

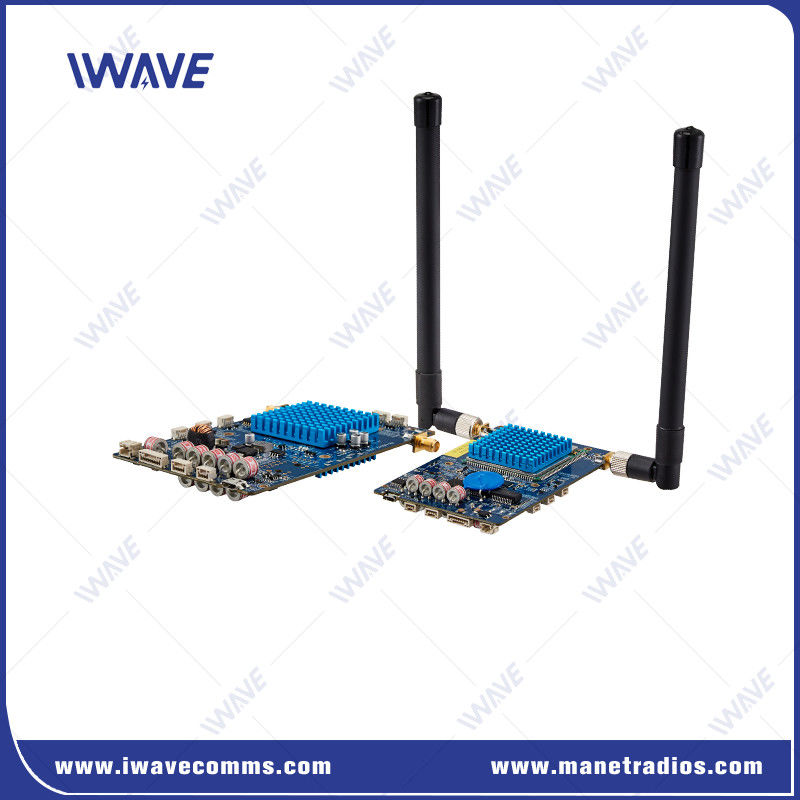

The FDM-6680 is a 120Mbps Wireless Video Communication Data Link For Unmanned System designed for UGVs, drones, UAVs, USVs, and other robotic platforms. It offers a high-performance wireless link capable of 8k video streaming, LAN, two-way serial data, and sensor data transmission. The system supports full-duplex broadband communication with error correction and achieves 120 Mbps communication speeds in both uplink and downlink.

Key Features:

• Scalable Node Configuration:

  One master node can support up to 64 sub-nodes, sharing a total bandwidth of 120 Mbps for video and data transmission.

• Communication Standards:

  Based on the TD-LTE wireless communication standard, incorporating OFDM (Orthogonal Frequency-Division Multiplexing) and MIMO (Multiple Input Multiple Output) technologies.

  Operates independently of any carrier's base station, ensuring flexibility and reliability.

• Data Transmission Capabilities:

  Supports Ethernet and full duplex TTL (Transistor-Transistor Logic) data transmission.

  Prioritizes control data transmission over network signal transmission to enhance responsiveness.

• Anti-Interference Technology:

  Utilizes automatic frequency hopping technology to mitigate interference, significantly reducing overall system power consumption and the size of the module.

Applications:

• The FDM-6800 is particularly well-suited for micro and small platforms that are sensitive to size, weight, and power (SWaP), including:

• Drones: For aerial surveillance and data collection.

• Unmanned Aerial Vehicles (UAVs): Facilitating communication in defense and commercial applications.

• Unmanned Ground Vehicles (UGVs): Enhancing remote operations in hazardous conditions.

• Unmanned Surface Vehicles (USVs): Supporting maritime operations and data transmission.

• Robotics: Enabling communication in various robotic applications.
