Key Features of Wireless UGV Datalink for Unmanned Vehicles & Robotic Platforms

1. Robust Connectivity
● 2×2 MIMO technology provides strong signal stability in dynamic environments
● 23dBm high power output enables long-range operation (1-3 km non-line-of-sight) with excellent penetration.

2. Military-Grade Security
● AES128 encrypted link prevents interception and unauthorized access
● Advanced anti-jamming features: intra-band frequency hopping and cross-band frequency hopping

3. High-Speed Data Transfer
● 100Mbps throughput supports real-time HD video streaming over IP
● Adaptive bandwidth allocation optimizes data flow

4. Scalable Network Architecture
● Supports 32-node mesh networks with flexible ad hoc networking and network scalability
● Intelligent relay functionality extends operational range

5. Compact Battlefield Solution
● Ultra-light design (281g) with a compact footprint (12.7×9.4×1.8cm)
● Dual-band (600MHz/1.4GHz) for enhanced mission adaptability and anti-jamming capabilities

Wireless UGV Datalink for Unmanned Vehicles & Robotic Platforms

Various Interfaces
The rich interfaces enable users to connect various terminals.
• RJ45 ports: users can connect the IP camera, sensors, onboard microcomputers such as Linux/windows/Android...
• Serial port: It can connect with PTZ, flight control such as pixhawk
• USB: It can be used for debugging and AT commands sending or enumerate it as network port or AT command port.
• Expansion Port: It is 20pin port for uses to define more interface and single-chip microprocessor application, download port, power port, etc.

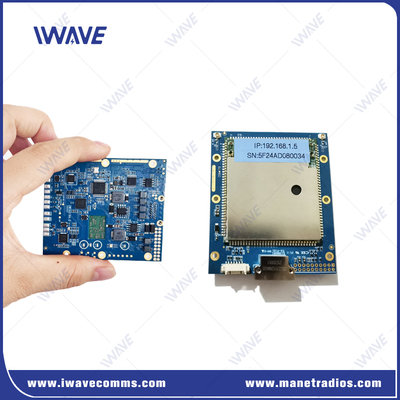

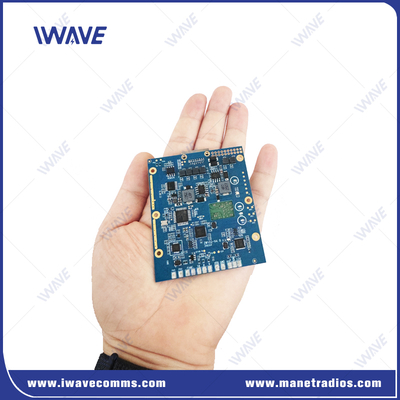

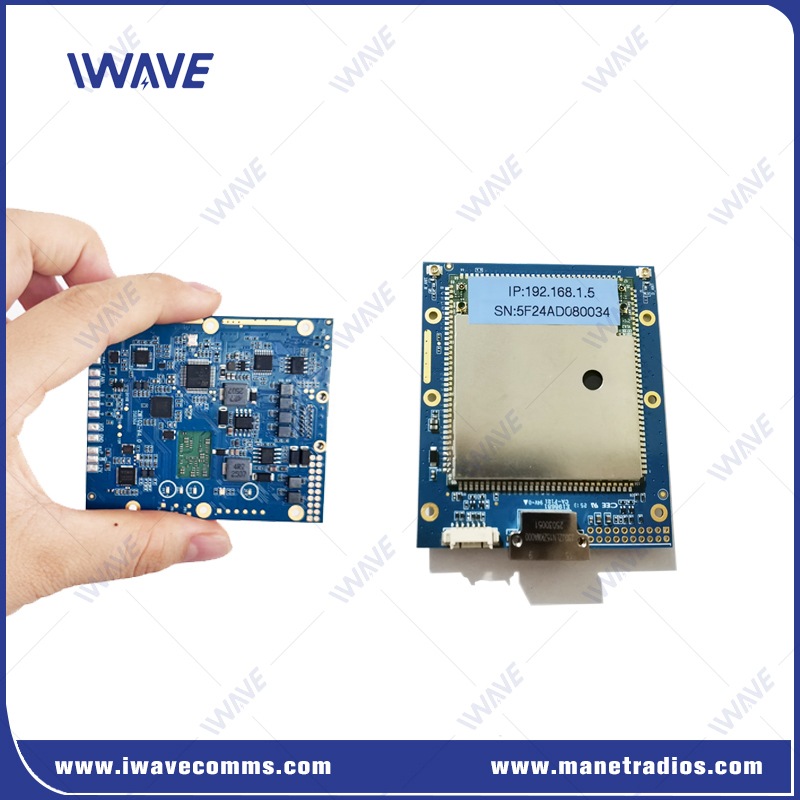

The FD-7800 measures just 72 x 60 x 10 mm and weighs only 33g. With its compact form factor, the FD-7800 is specifically designed for anti-interference environments, making it ideal for installation as a mobile station system in ground, aerial, and maritime applications—such as micro drones, mini robots, or other unmanned systems with limited space.

Featuring a wide input voltage range of 5 to 32V and a power consumption of just 5W, the FD-7800 is exceptionally suited for power-critical unmanned vehicle applications, helping to extend battery life.

• Pipeline detection/disposal
• Fire rescue
• Route clearance
• Combat engineering
• UGV/Robot dog swarm

General

Wireless

Dual Frequency Band
