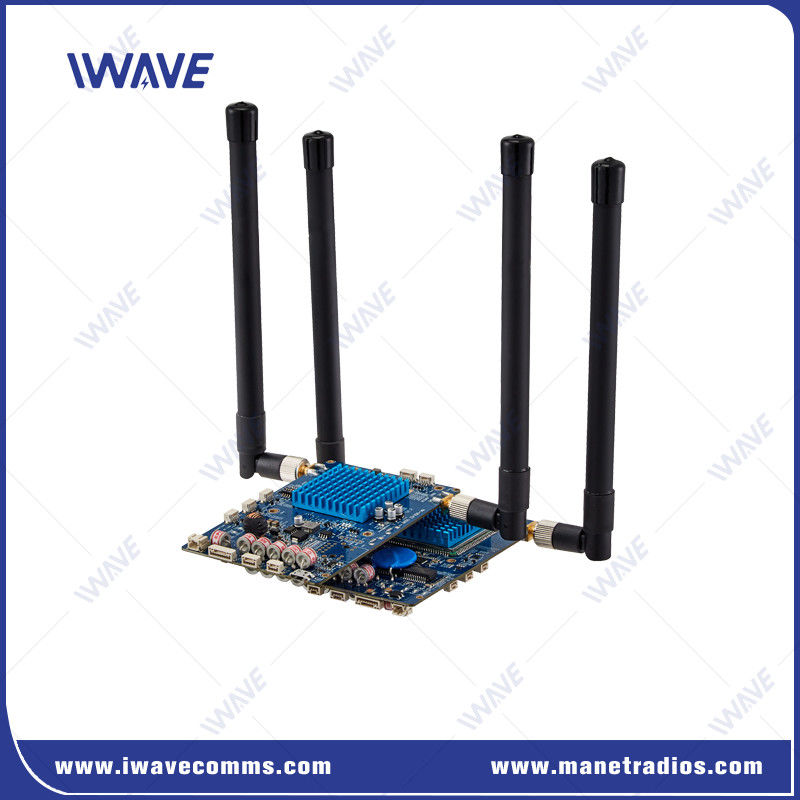

High Throughput Wireless Communication Module 120Mbps For Unmanned System

Model: FDM-6680

High Throughput Wireless Communication Module For Unmanned System

The FDM-6680 is an advanced digital wireless communication system designed for UGVs, drones, UAVs, USVs, and other robotic platforms. It offers a high-performance wireless link capable of 8k video streaming, LAN, two-way serial data, and sensor data transmission. The system supports full-duplex broadband communication with error correction and achieves 120 Mbps communication speeds in both uplink and downlink.

Key Features:

• MIMO 2x2: Multiple-Input Multiple-Output technology for improved signal reliability and data throughput.

• Dual Ethernet Ports:

  Gigabit Ethernet port for high-speed data transfer.

  POE (Power Over Ethernet) Ethernet port for flexible power and data connectivity.

• Support for up to 64 Nodes: One central node can manage up to 64 sub-nodes for large-scale deployments.

• AES 256-bit Encryption: Provides strong encryption to secure the communication link and prevent unauthorized access.

• Adjustable Bandwidth: Offers several bandwidth options (3 MHz, 5 MHz, 10 MHz, 20 MHz, 40 MHz) to optimize communication for various environments.

• Long NLOS Range: Supports Non-Line-of-Sight (NLOS) distances of 500m-3km for ground-to-ground communication.

• High-Speed Moving Support: Can maintain a stable link even at speeds up to 300 km/h.

• High Throughput: Achieves 80 Mbps to 100 Mbps for both uplink and downlink simultaneously.

• Power Self-Adaptation: Dynamically adjusts transmit and receive power based on channel conditions, reducing power consumption and network interference.

Applications:

• Mini and Micro UAS (Unmanned Aircraft Systems): Ideal for small drones where size, weight, and power (SWaP) are critical.

• UGVs (Unmanned Ground Vehicles): Provides robust wireless communication for ground-based autonomous vehicles.

• Wireless Telemetry: Transmits telemetry data from sensors for remote monitoring and control.

• NLOS Wireless Video: Suitable for transmitting real-time video in environments where traditional line-of-sight communication is not possible.

• Ethernet Wireless Extension: Can extend Ethernet networks wirelessly, especially in remote or hard-to-reach locations.

• Wireless Control Systems: Supports control of robotic systems over a secure wireless link.
